Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle

Components and components location

Component Location

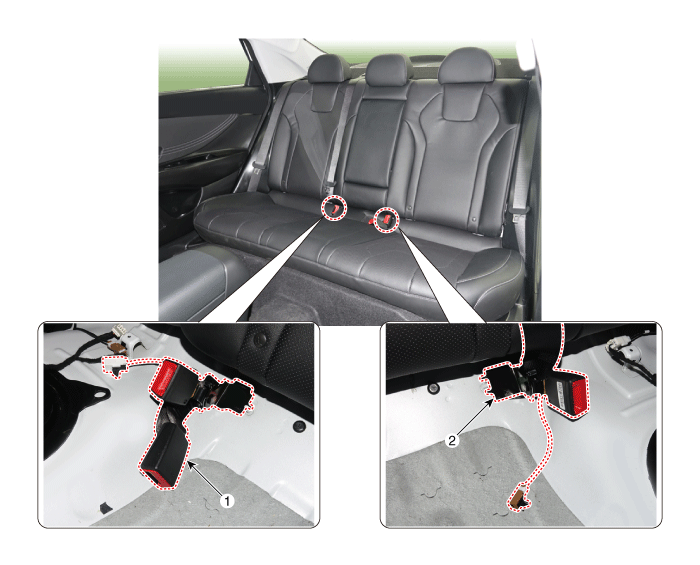

1. Rear seat belt buckle [RH, CTR]

2. Rear seat belt buckle [RH]

Repair procedures

Replacement

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

Remove the rear seat belt buckle.

[LH, CTR]

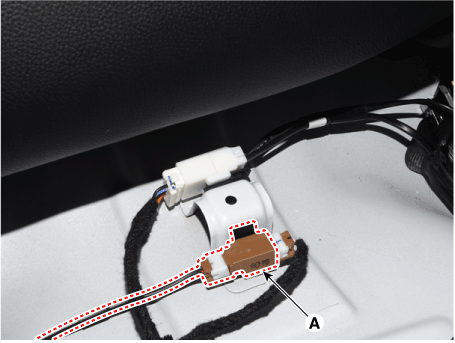

1)	Press the lock pin, separate the rear seat belt connector (A).

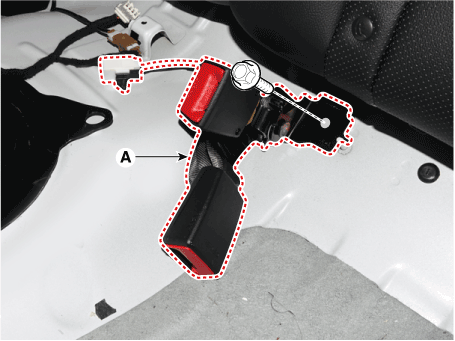

Loosen the mounting bolt, remove the rear seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

[RH]

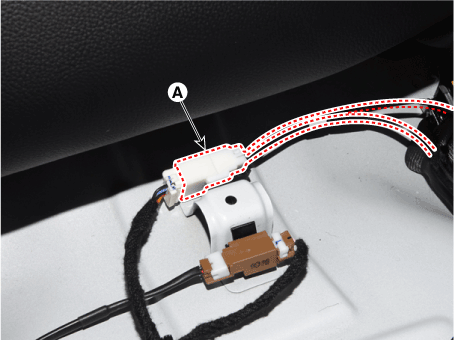

1)	Press the lock pin, separate the rear seat belt connector (A).

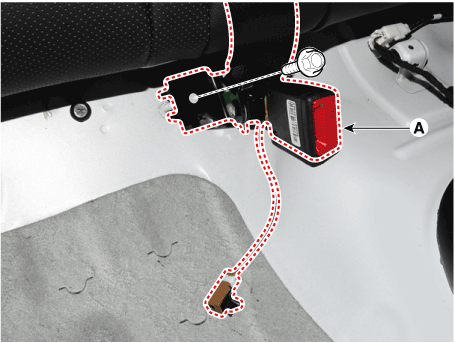

Loosen the mounting bolt, remove the rear seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types.

•	Distinguish the rear side seat buckle from the center seat buckle before latching.

•	If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example - beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.)

•	After latching the buckle and tongue, check the fastening force using a Push - Pull Gauge (fastening force: 3kgf or less).
