Hyundai Elantra (CN7): Body (Interior and Exterior) / Rear Seat Belt

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Rear Seat Belt

Components and components location

Components

1. Front seat belt retractor
2. Height adjust
3. Front seat belt upper anchor
4. Rear seat belt retractor [RH]
5. Rear seat belt retractor [CTR]
6. Seat belt buckle [RH]
7. Seat belt buckle [LH, CTR]
8. Rear Seat belt lower anchor

Rear Seat Belt Retractor

Components and components location

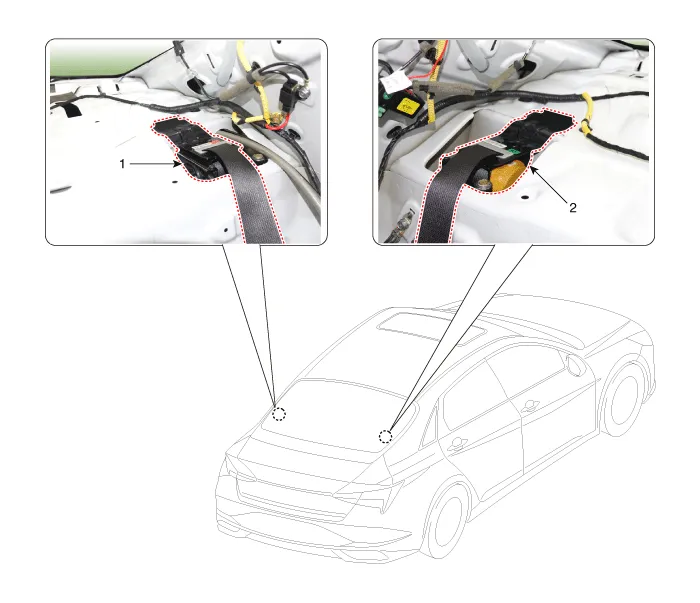

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Repair procedures

Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the package tray trim.
(Refer to Interior Trim - "Package Tray Trim")
2.
After loosening the mounting bolt, remove the rear seat belt lower anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]

[RH]

3.
Separate the rear seat belt connector (A) and loosen the mounitng bolt, remove the rear seat belt retratcor (B).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]

[RH]

4.
Install in the reverse order of removal.

•
Replace any damaged clips (or pin - type retainers).

Rear Center Seat Belt Retractor

Components and components location

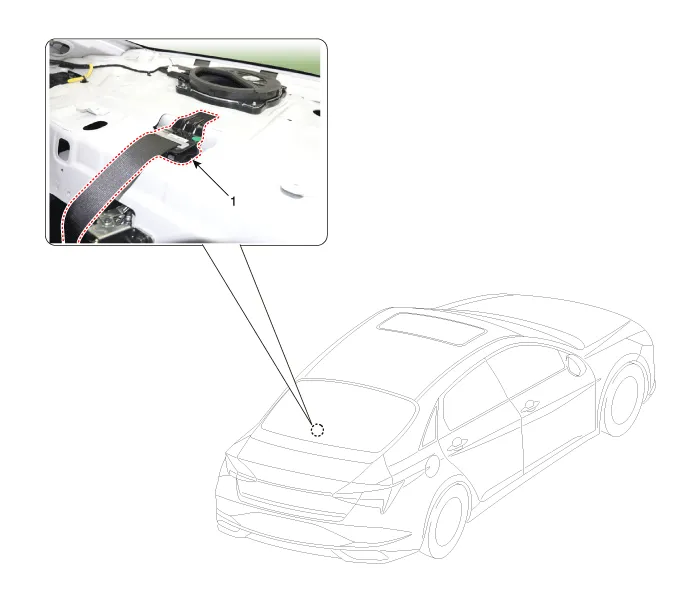

Component Location

1. Rear center seat belt retractor


Repair procedures

Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the package tray trim.
(Refer to Interior Trim - "Rear Package Tray Trim")
2.
After loosening the mounting bolts, remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.

Rear Seat Belt Buckle

Components and components location

Component Location

1. Rear seat belt buckle [RH, CTR]
2. Rear seat belt buckle [RH]

Repair procedures

Replacement
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat belt buckle.
[LH, CTR]
1)
Press the lock pin, separate the rear seat belt connector (A).

2)
Loosen the mounting bolt, remove the rear seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

[RH]
1)
Press the lock pin, separate the rear seat belt connector (A).

2)
Loosen the mounting bolt, remove the rear seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

•
The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types.
•
Distinguish the rear side seat buckle from the center seat buckle before latching.
•
If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example - beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.)
•
After latching the buckle and tongue, check the fastening force using a Push - Pull Gauge (fastening force: 3kgf or less).
