Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Center Seat Belt Retractor

Components and components location

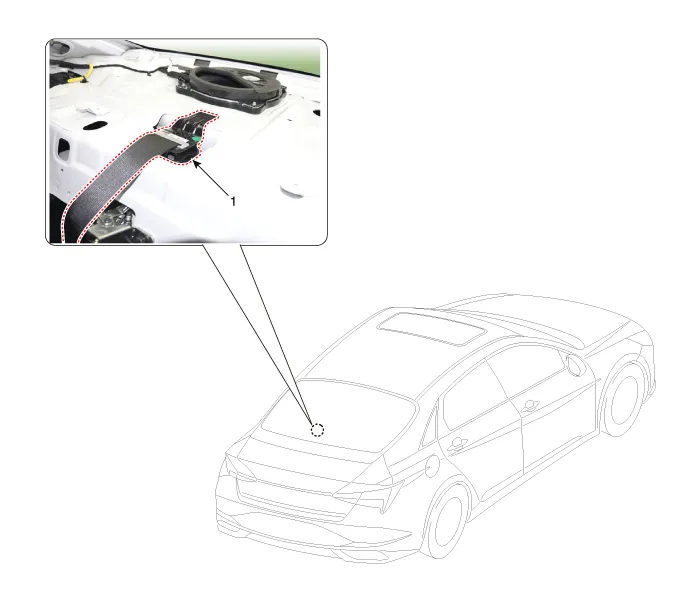

Component Location

1. Rear center seat belt retractor


Repair procedures
Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the package tray trim.
(Refer to Interior Trim - "Rear Package Tray Trim")
2.

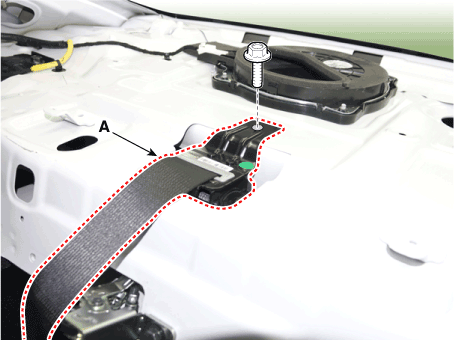

After loosening the mounting bolts, remove the rear center seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.
