Hyundai Elantra: Front Seat Belt / Front Seat Belt Buckle

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle

Components and components location

Components Location

1. Front seat belt buckle

Repair procedures

Replacement

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

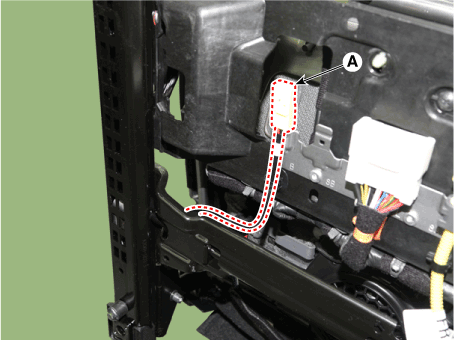

2.	Disconnect the front seat belt buckle connector wiring (A).

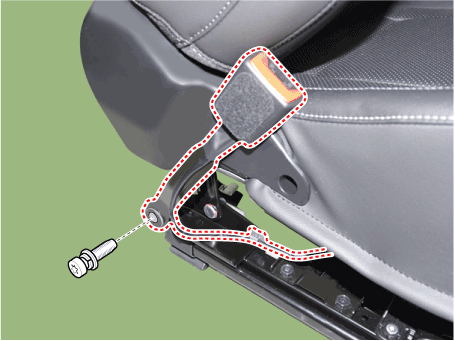

After loosening the mounting bolt, remove the front seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	Make sure the connector Is connected in properly.

•	Replace any damaged clips.

Height Adjust

Components and components location Component Location 1. Height adjust Repair procedures Replacement1.Remove the front seat belt upper anchor...
