Hyundai Elantra: Hood / Hood Latch Release Handle

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Release Handle

Components and components location

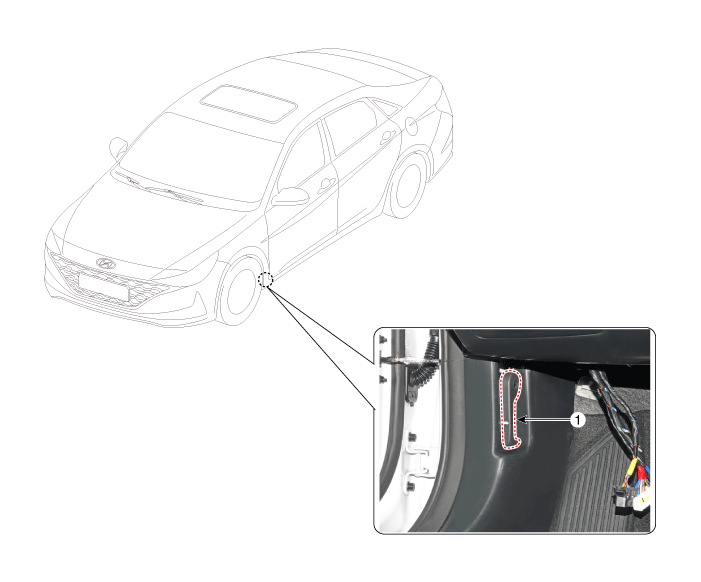

Component Location

1. Hood latch release handle

Repair procedures

Replacement

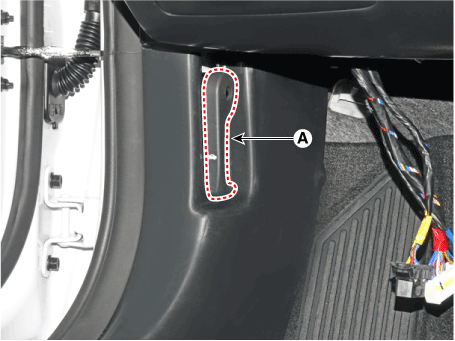

1.	Using screw driver or remover, remove the hood release handle (A).

To install, reverse the removal procedure.

•	Make sure the hood latch cable is connected properly.

•	Make sure the hood locks / unlocks and opens / closes properly.
