Hyundai Elantra: Hood / Hood Insulator Pad

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Insulator Pad

Repair procedures

Replacement

•	Be careful not to scratch the hood panel.

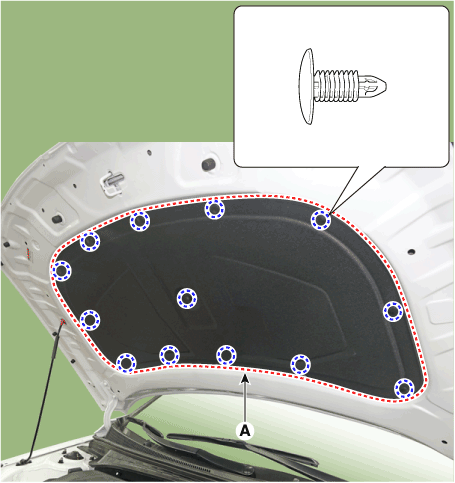

1.	Using a clip remover, remove the clips and then the hood insulator pad (A).

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
