Hyundai Elantra: Evaporative Emission Control System / Fuel Tank Air Filter
Hyundai Elantra (CN7) 2021-2025 Service Manual / Emission Control System / Evaporative Emission Control System / Fuel Tank Air Filter
Repair procedures
| Removal |
| 1. | Turn the ignition switch OFF and disconnect the negative (-) battery cable. |

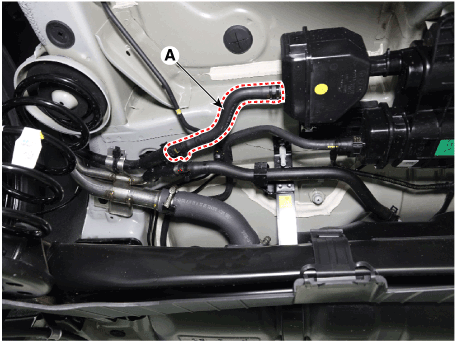

| 2. | Disconnect the vent hose (A).
|

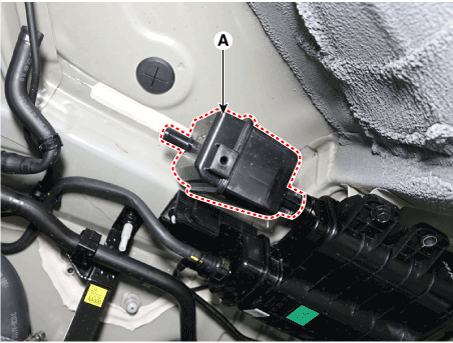

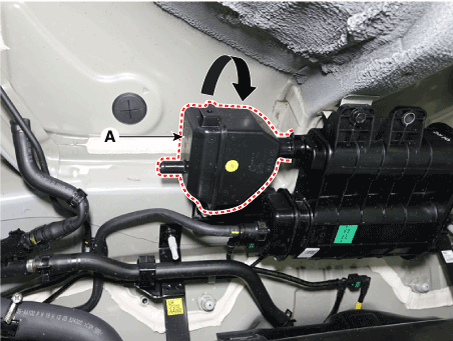

| 3. | Remove the fuel tank air filter (A) by rotating it 30 degrees.
|
| Installation |
| 1. | Install in the reverse order of removal. |
Fuel Filler Cap
Description and operation
DescriptionA ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which would seal the fuel filler...
