Repair procedures
•
| Use fender covers to avoid damaging painted surfaces. |
•
| To avoid damage, unplug the wiring connectors carefully while holding the connector portion. |
|
•
| Mark all wiring connector and hoses to avoid misconnection. |
|
1. | Disconnect the negative battery terminal. |
2. | Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover") |
3. | Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
4. | Drain the coolant. (Refer to Cooling System - "Coolant") |
5. | Recover the A/C refrigerant and then remove the high & low pressure pipes of A/C compressor. (Refer to Heating, Ventilation Air conditioning - "Compressor") |
6. | Remove the air duct and air cleaner assembly. (Refer to Intake and Exhaust System - "Air Cleaner") |
7. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |

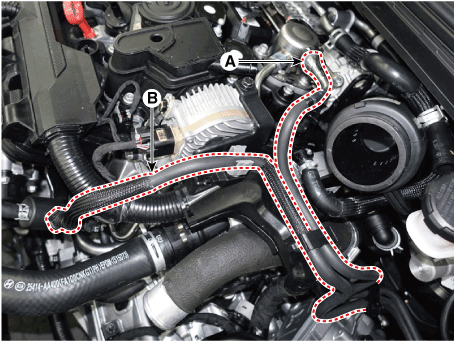

8. | Disconnect the brake booster vacuum hose (A).
|
9. | Disconnect the fuel hose (A) and PCSV hose (B).
|

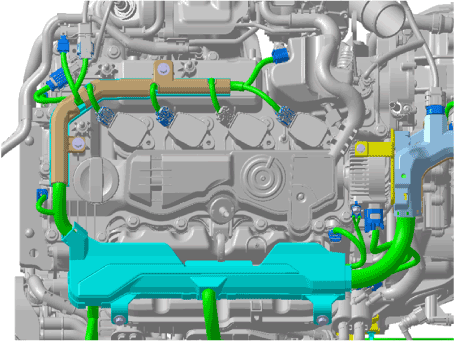

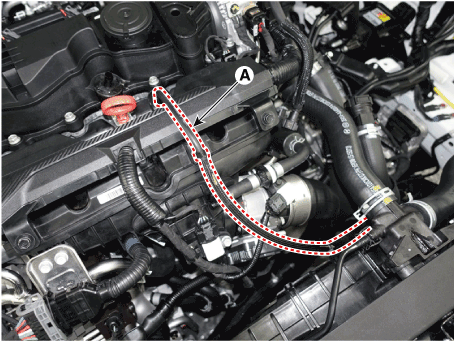

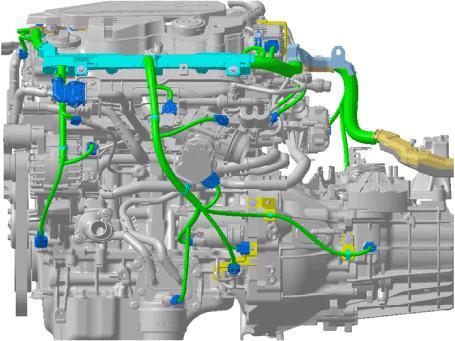

10. | Disconnect the wiring connectors and harness clamps and remove the connector brackets around the engine and transaxle assembly.

|

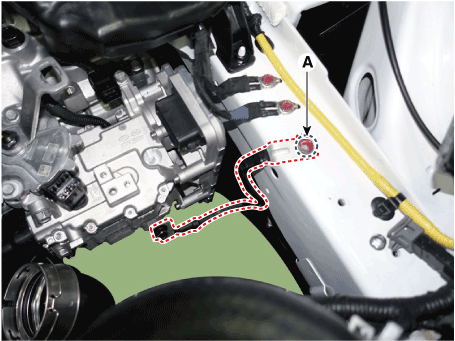

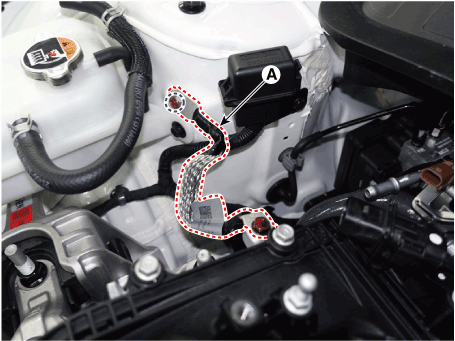

11. | Disconnect the engine ground cable (A). Tightening torque : 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft) |

|
12. | Disconnect the transaxle ground cable (A). Tightening torque : 26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft) |

|

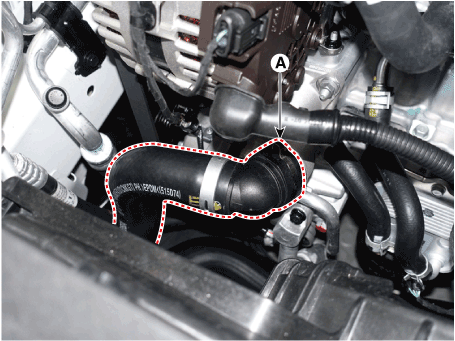

13. | Remove the intercooler inlet hose and pipe. (1) | Disconnect the RCV vaccum hose (A).
|

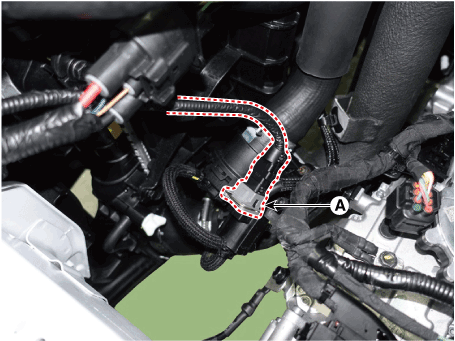

(2) | Disconnect the RCV valve connector (A).
|
(3) | Remove the intercooler inlet hose and pipe (A). Tightening torque : Clamp bolt: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft) |

•
| Insert the hose until it reaches the end of stopper. |
|
|
|

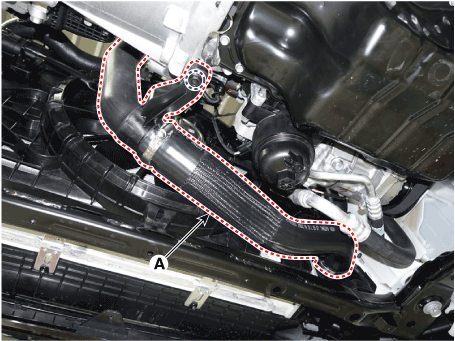

14. | Remove the intercooler outlet hose and pipe. (1) | Disconnect the intercooler outlet hose (A).

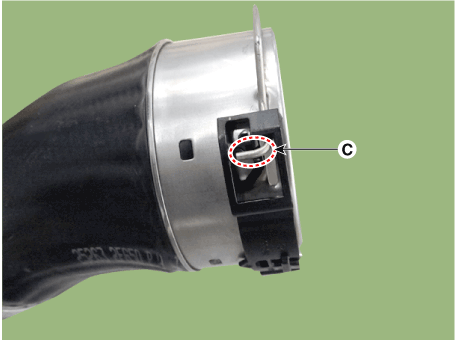

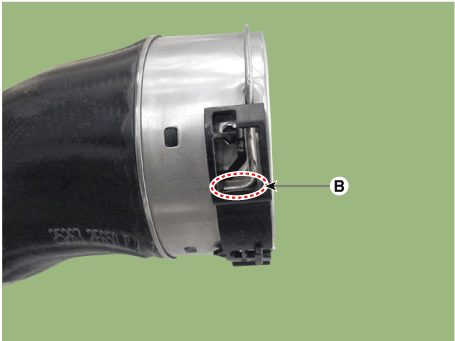

1) | When disconnecting the intercooler hose, pull the quick connector clamp (A) in the direction of the arrow as below.
|
2) | Move the quick connector clamp from B to C position as below and then disconnect by pulling the quick connector hose.

|
|
|
(2) | Loosen the intercooler outlet pipe bolt, and then remove the intercooler outlet hose and pipe (A). Tightening torque : Bracket bolt : 6.86 - 10.78 N.m (0.7 - 1.1 kgf.m, 5.06 - 7.96 lb-ft) Clamp bolt : 4.90 - 6.86 N.m (0.5 - 0.7 kgf.m, 3.62 - 5.06 lb-ft) |

|
|

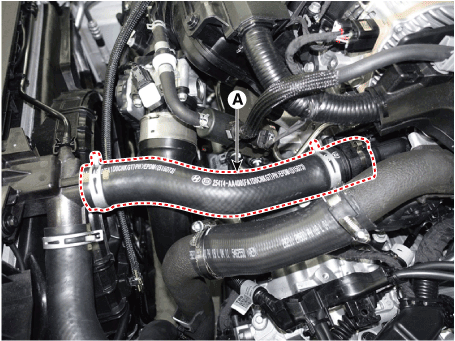

15. | Disconnct the radiator upper hose (A).
|
16. | Disconnct the radiator lower hose (A).
|

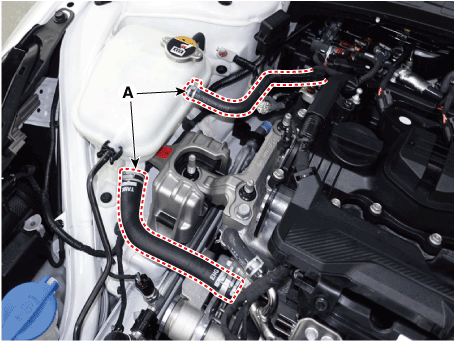

17. | Disconnect the coolant reservoir tank water hoses (A).
|
18. | Disconnect the heater hoses (A).
|
19. | Remove the universal joint from the shaft joint (Refer to Steering System - "Steering column & shaft") |
20. | Remove the front muffler heat protector (A). Tightening torque : 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft) |

|

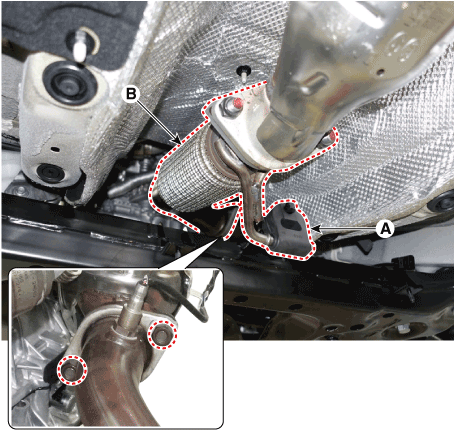

21. | Loosen the hanger (A) and then remove the front muffler (B). Tightening torque : 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft) |

|

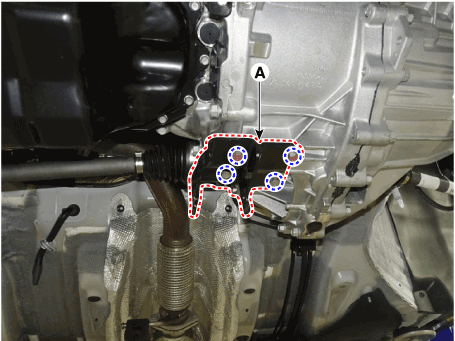

22. | Remove the roll rod bracket (A). Tightening torque : Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft) Bolts (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft) |

|
23. | Remove the roll rod mounting support bracket (A). Tightening torque : 49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft) |

|
24. | Remove the sub frame. (Refer to Suspension System - "Sub frame") |
25. | Support the engine and transaxle assembly safely with a floor jack.
|

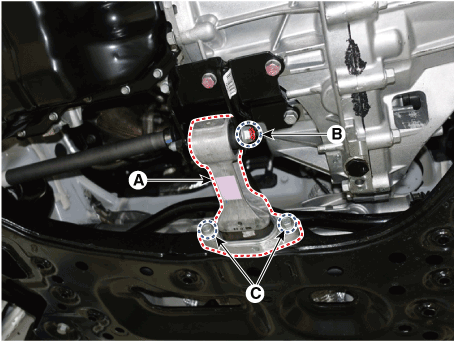

26. | Remove the engine mounting support bracket (A). Tightening torque : Nut (B) : 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft) Bolt, Nuts (C) : 58.8 - 73.6 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft) |

|

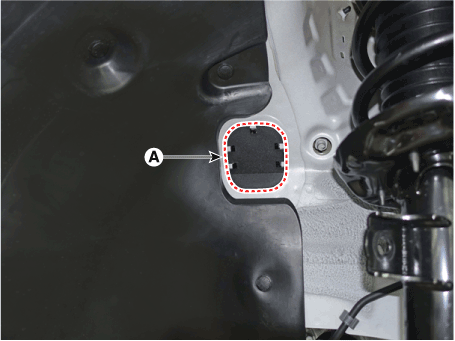

27. | Remove the service cover (A).
|

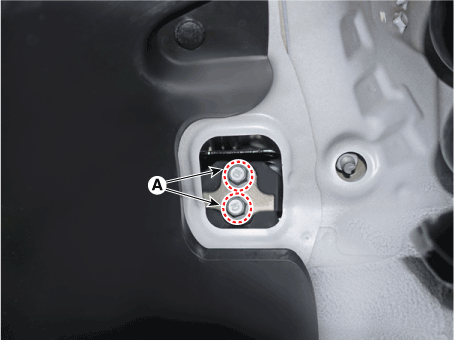

28. | Remove the transaxle mounting bolts (A). Tightening torque : 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft) |

|

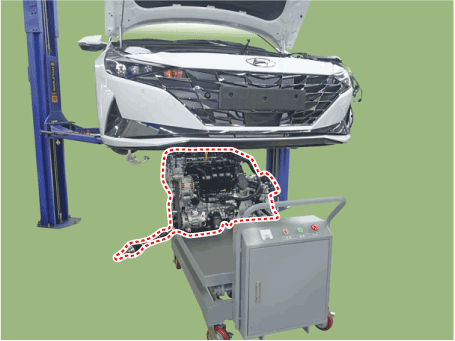

29. | Remove the engine and transaxle assembly from a vehicle by slowly lifting off the vehicle.
•
| Before removing the engine assembly, make sure to check that the hoses and wire connectors are completely disconnected. |
•
| When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components. |
|
|
30. | Install in the reverse order of removal. •
| Refill a radiator and a reservoir tank with engine coolant. (Refer to Cooling System - "Coolant") |
•
| Check the engine oil level. If necessary, refill engine with engine oil. |
•
| Check the transaxle oil level. If necessary, refill a transaxle with fluid. |
•
| Charging the refrigerant gas. |
•
| Inspect for fuel leakage. |
|
|
