Hyundai Elantra: Fuel Delivery System / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and components location

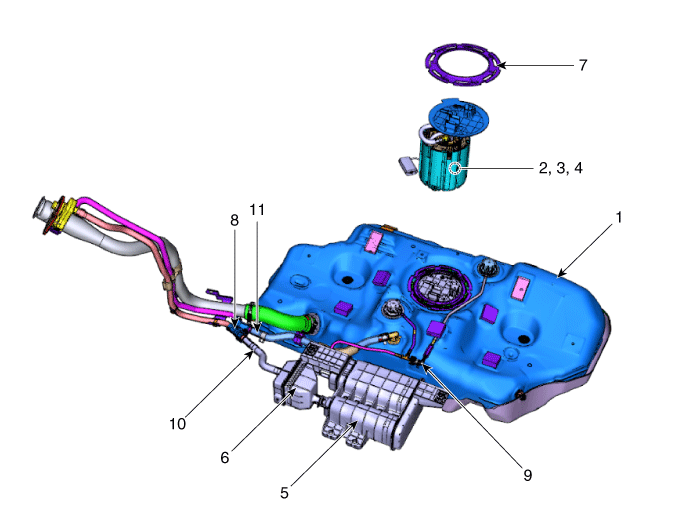

Components Location

1. Fuel Tank
2. Fuel Pump
3. Fuel Fiter
4. Fuel Pressure Regulator
5. Canister
6. Fuel tank air filter
7. Fuel pump plate cover
8. Fuel filler hose
9. Vapor hose
10. Ventilation hose
11. Leveling hose

    Fuel Delivery System

    ..

    Fuel pressure test

    Fuel Pressure Test1.Release the residual pressure in fuel line.(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")    • When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur...
