Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Glass

Components and components location

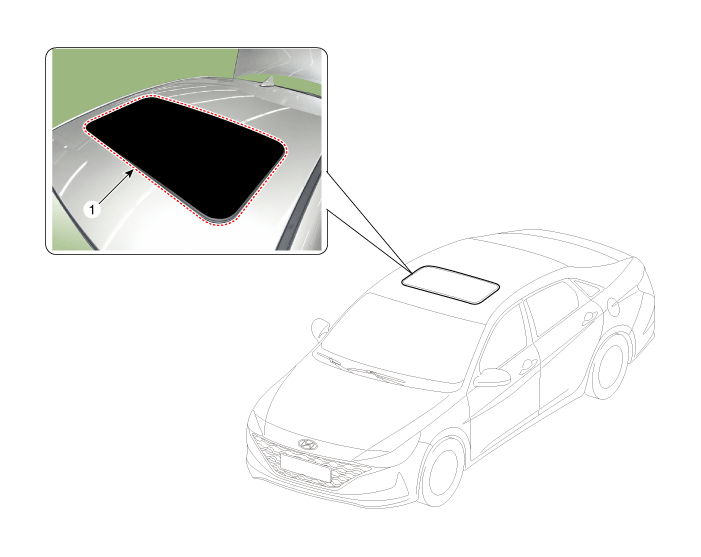

Components Location

1. Sunroof glass


Repair procedures
Replacement

•
Put on glove to protect your hands.
1.
Close the sunroof glass completely by pressing the sunroof switch.
2.

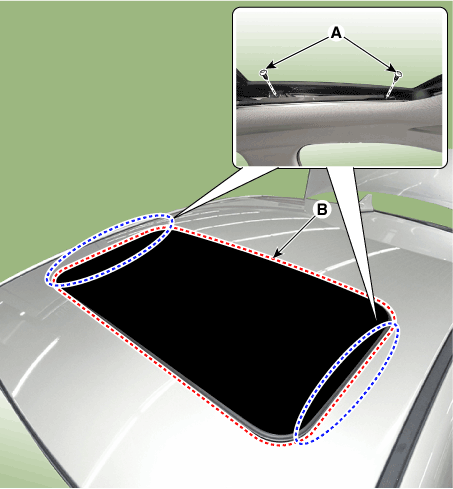

Loosen the mounting screws (A) and remove the sunroof glass (B).

•
Do not damage the roof panel.

3.
To install, reverse the removal procedure.

•
After replacing the movable glass adjust the alignment if needed.

    Repair procedures

    AdjustmentInspect Glass Alignment1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value [mm(in...

    Sunroof Deflector

    Repair procedures Replacement1.Open the glass fully.2.Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).3.To install, reverse the removal procedure...
