Hyundai Elantra: Sunroof / Sunroof Deflector
Repair procedures

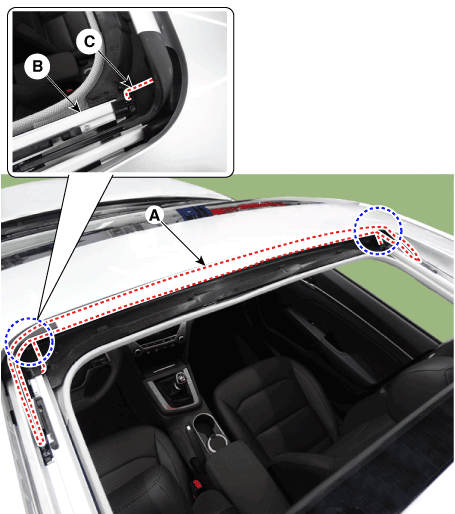

2. | Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).
|
3. | To install, reverse the removal procedure. |
Components and components location
Components Location1. Sunroof glass
Repair procedures
Replacement
•
Put on glove to protect your hands...
Components and components location
Components Location1. Sunroof assembly
Repair procedures
Replacement
•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
