Hyundai Elantra: Accessing Your Vehicle / Smart Key
.png)
Your HYUNDAI uses a smart key, which
you can use to lock or unlock a door (and
trunk) and even start the engine even just
carrying the key.

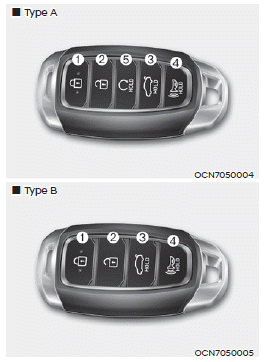

(1) Door Lock
(2) Door Unlock
(3) Trunk Open
(4) Panic
(5) Remote Start
If the remote key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover...
1. Close all doors, engine hood and
trunk.
2. Carry the smart key.
3. Either press the door handle button or
press the Door Lock button (1) on the
smart key...
