Hyundai Elantra: Front Door / Front Door Module

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Module

Components and components location

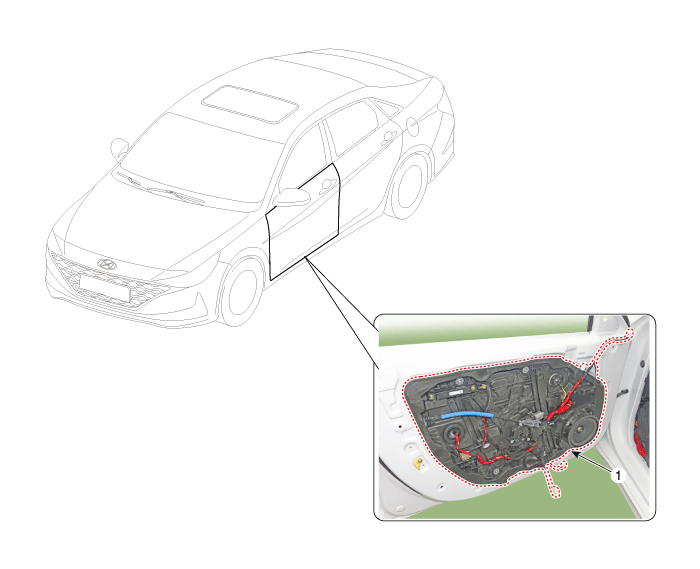

Component Location

1. Front door module

Repair procedures

Replacement

1.	Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass")

2.	Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Handle")

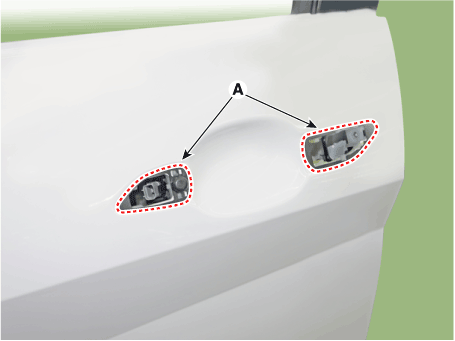

3.	Remove the outside handle pad (A).

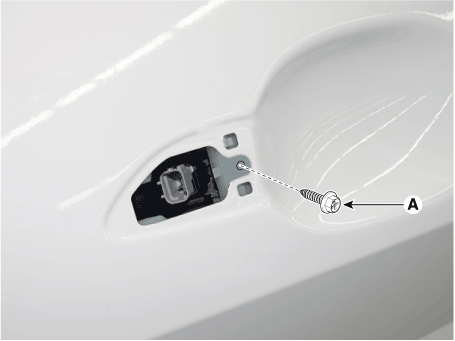

Loosen the front door outside handle base mounting bolt (A).

Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

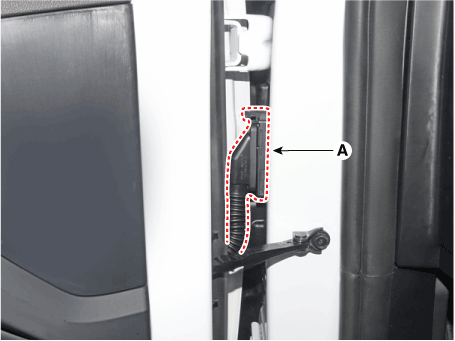

5.	Press the lock pin, separate the outside rear view mirror connector (A).

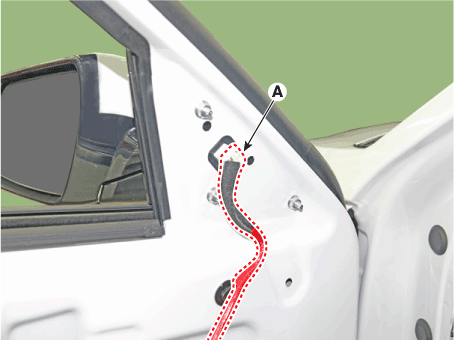

6.	Press the lock pin, sepatate the front door main connector (A).

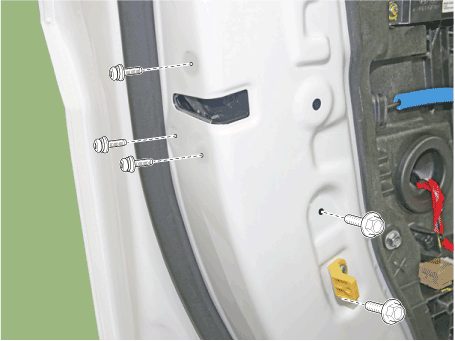

Loosen the front door latch mounting screws and bolts.

Screw : 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

Bolt : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 8.5 - 10.1 lb-ft)

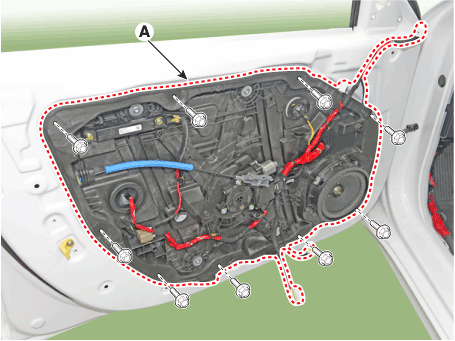

Loosen the mounting bolts and remove the front door module (A).

Tightening torque :

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

To install, reverse the removal procedure.

•	Make sure connectors are connected properly and each rod is connected securely.

•	Make sure the door locks / unlocks and opens / closes properly.
