Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle

Components and components location
Component Location

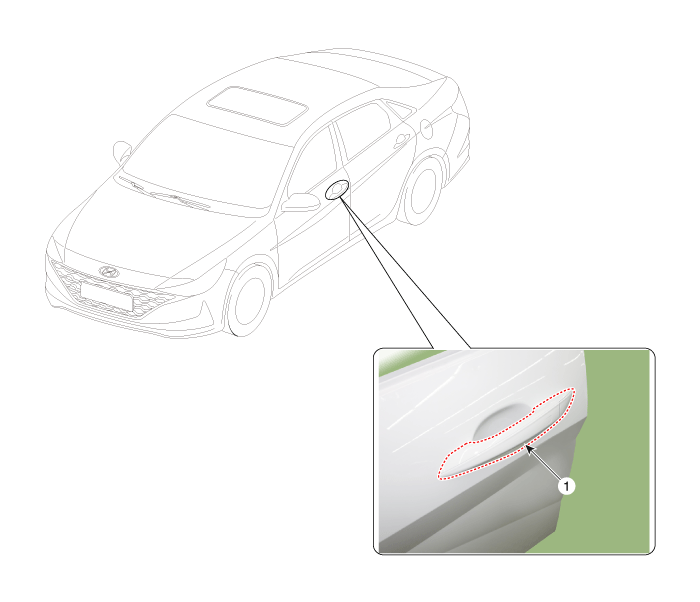

1. Front door outside handle


Repair procedures
Replacement
1.

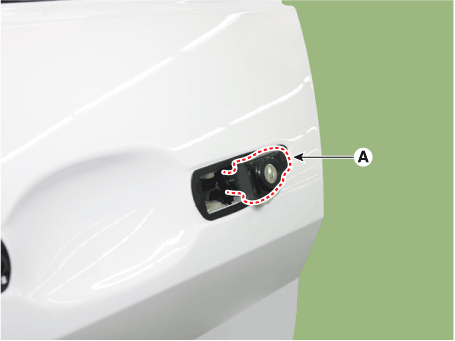

Remove the plug hole (A).

2.

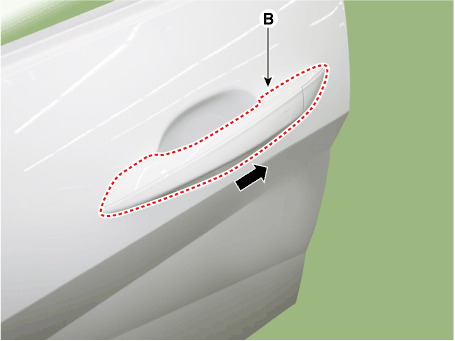

Loosen the mounting screw (A) and then remove the front door outside handle (B) by sliding it forward.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

3.
Remove the front door lock assembly (A).

4.

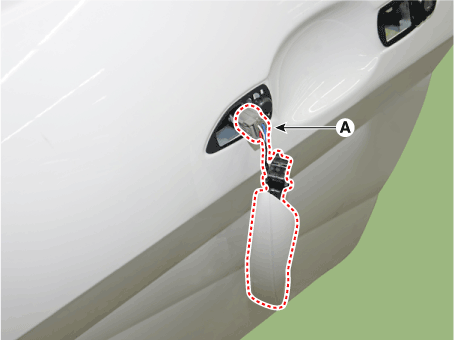

Disconnect the front door outside handle connector (A).

5.
To install, reverse the removal procedure.

•
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
