Components and components location

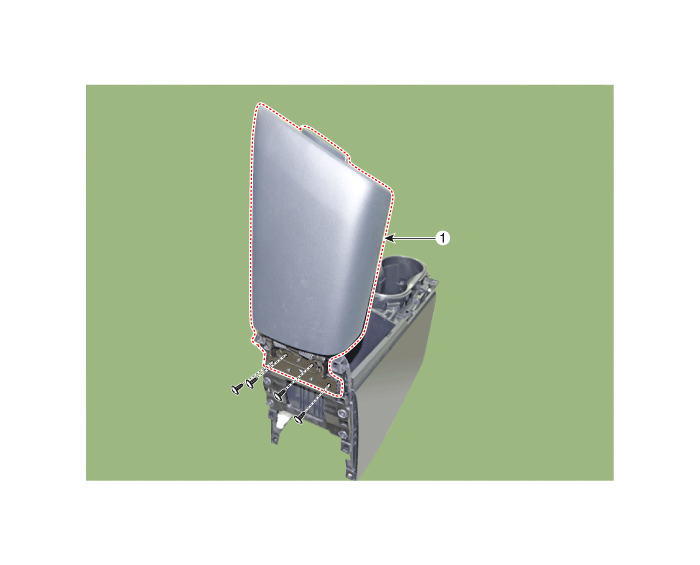

Component Location
[This illustration shows the LHD type. RHD type is symmetrical.]

1. Console armrest


Repair procedures
Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover")
3.

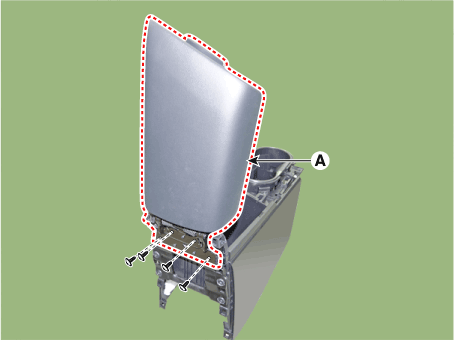

Loosen the mounting screws and remove the console armrest (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
