Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures
Replacement
[Rear door side weatherstrip]
1.
Loosen the rear door checker (B) mounting bolt.
Tightening torque :
16.7 - 21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb-ft)
2.
Detach the clips, then remove the rear door side weatherstrip (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips.
[Rear door body side weatherstrip]
1.

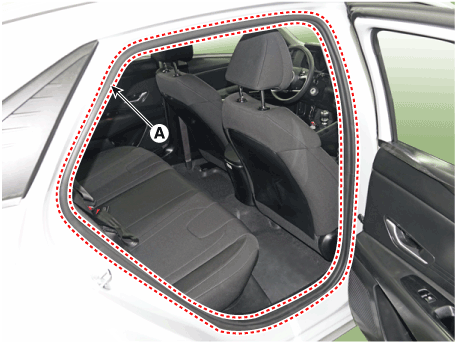

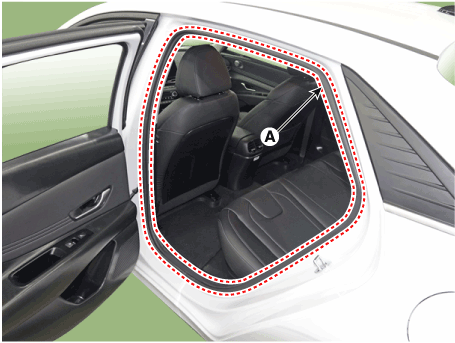

Detach the clips, then remove the rear door body side weatherstrip (A).
[LH]

[RH]

2.
To install, reverse the removal procedure.

•
Replace any damaged clips.
