Hyundai Elantra: Wireless Power Charger System / Components and positions

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Wireless Power Charger System / Components and positions

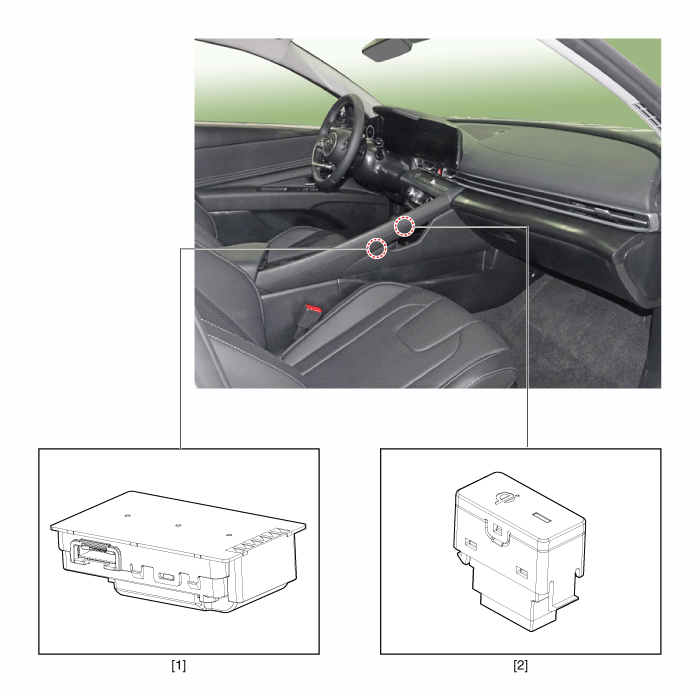

Components

1. Wireless power charging unit

2. Wireless power charging lamp

Description and operating principle

Description and OperationWireless Power Charger SystemDuring ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone...

Troubleshooting

TroubleshootingWireless Power Charger System Troubleshooting Trouble status Inspection item Inspection Not chargedCheck the mobile phone status R-1Amber LED blinks OvercurrentR-2OverheatingR-2Foreign matterR-2R-1...
