Hyundai Elantra: Driving Safety / Blind-Spot Collision Warning (BCW)

Blind-Spot Collision Warning is designed to help detect and monitor approaching vehicles in the driver’s blind spot area and warn the driver of a possible collision with a warning message and audible warning.

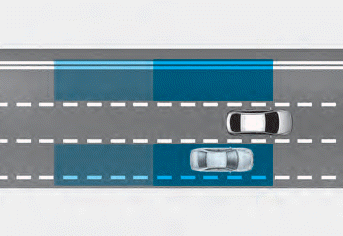

Blind-Spot Collision Warning helps detect and inform the driver that a vehicle is in the blind spot.

CAUTION

The detecting range may vary depending on the speed of your vehicle. However, even if there is a vehicle in the blind spot, the system may not warn you when you pass by at high speed.

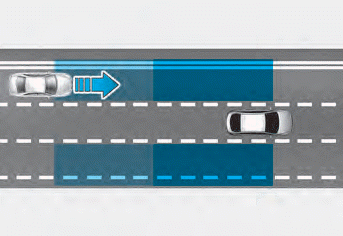

Blind-Spot Collision Warning helps detect and informs the driver that a vehicle is approaching at high speed from the blind spot area.

CAUTION

Warning timing may vary depending on the speed of the vehicle approaching at high speed.

Information

In the following text, Blind-Spot Collision Warning system will be referred as Blind- Spot Safety system.

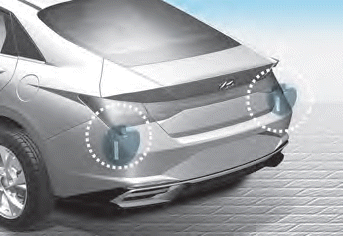

Detecting sensor

[1] : Rear corner radar

Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Take the following precautions to maintain optimal performance of the detecting sensor:

• Never disassemble the rear corner radar or radar assembly, or apply any impact on it.
• If the rear corner radars have been replaced or repaired, we recommend that the vehicle be inspected by an authorized HYUNDAI dealer.
• If there is impact on the rear corner radar or near the radar, even though the warning message does not appear on the cluster, Blind-Spot Safety system may not operate properly. We recommend that the system be inspected by an authorized HYUNDAI dealer.
• Use only genuine parts to repair the rear bumper where the rear corner radar is located.
• Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard near the rear corner radar.
• The system may not work properly if the bumper has been replaced, or the surroundings of the rear corner radar has been damaged or paint has been applied.
• If a trailer, carrier, etc. is installed, it may adversely affect the performance of the rear corner radar or the system may not operate.
