Hyundai Elantra: Starting System / Troubleshooting

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Electrical System / Starting System / Troubleshooting

Troubleshooting

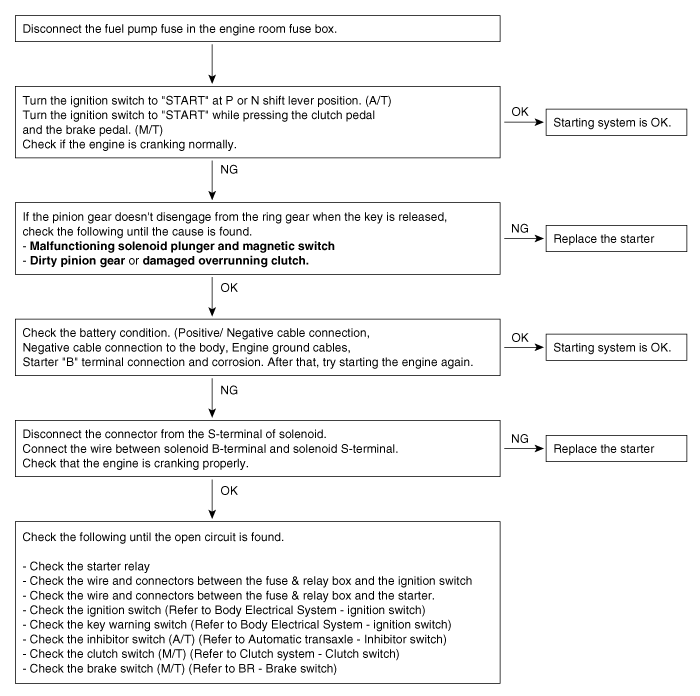

•	The battery must be in good condition and fully charged for this troubleshooting.

Description and operation

DescriptionThe starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery cable...

Starter

Description and operation DescriptionThe starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch, ignition lock switch, connection wires and the battery cable...
