Hyundai Elantra (CN7): Trunk Lid / Trunk Lid Weatherstrip

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Weatherstrip

Repair procedures

Replacement

•
Do not apply sealant to the body.
1.

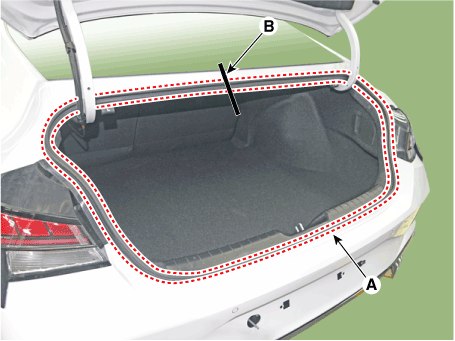

Remove the trunk lid weatherstrip (A).

2.
To install, reverse the removal procedure.

•
When installing the trunk lid weatherstrip, check the center - marking line (B).
