Hyundai Elantra: Rear View Monitor (RVM) / Repair procedures

Hyundai Elantra (CN7) 2021-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the trunk trim. (Refer to Body - "Trunk Rid Trim")

3.	Remove the trunk back panel. (Refer to Body - "Trunk back Panel")

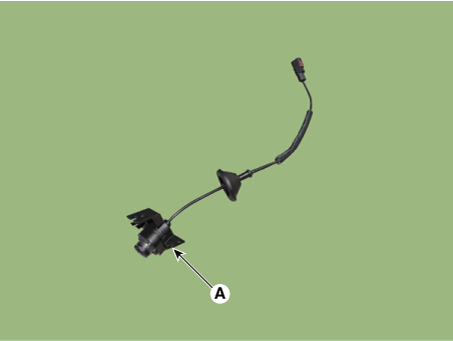

4.	Loosen the mounting screw and then remove the rear view camera (A).

Installation

1.	Install the rear view camera.

2.	Install the and trunk back panel.

3.	Install the and trunk rid trim.

4.	Connect the negative (-) battery terminal.
