Hyundai Elantra: Interior Trim / Rear Wheel House Trim

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Wheel House Trim

Components and components location

Component Location

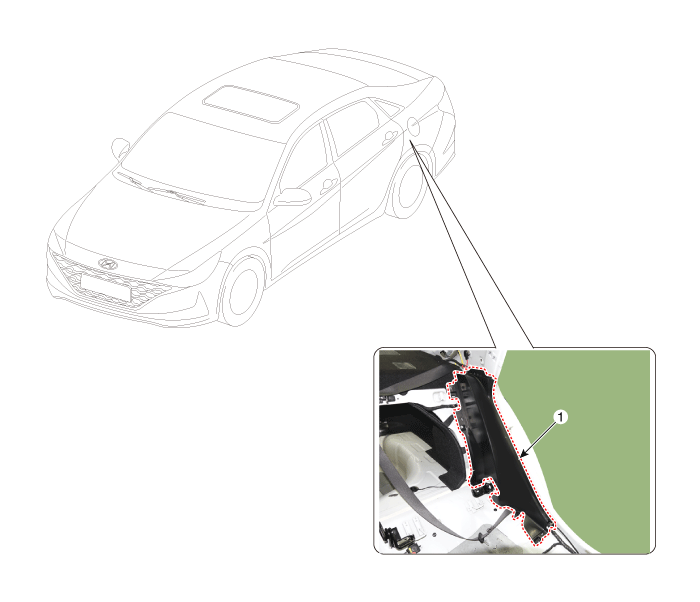

1. Rear wheel house trim

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

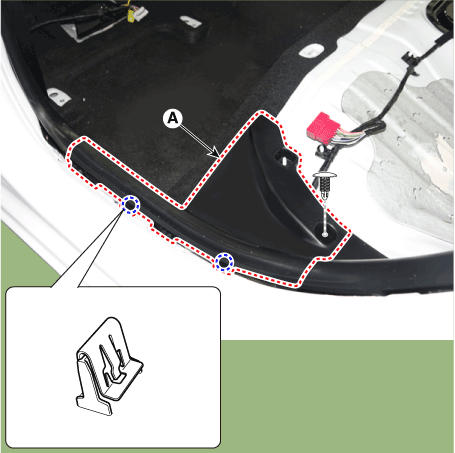

2.	Using screwdriver or remover, remove the rear door scuff trim (A).

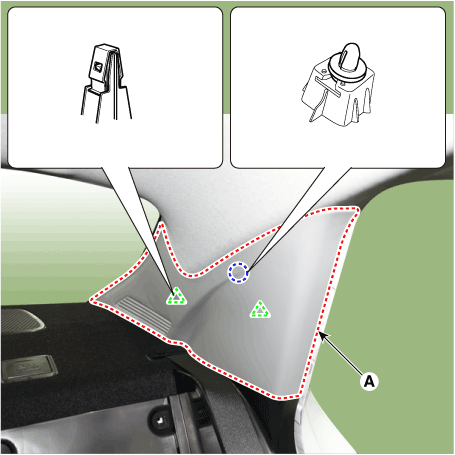

3.	Using screwdriver or remover, remove the rear pillar trim (A).

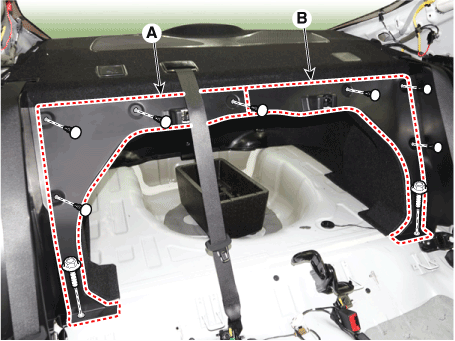

4.	Loosen mounting clips and bolts, remove the luggage partition side trim (A) and (B).

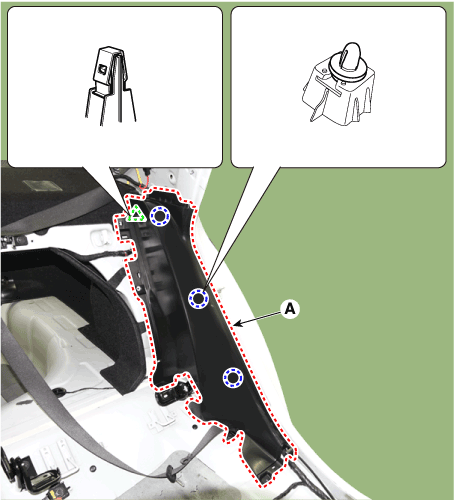

5.	After loosening the mounting bolts, remove the rear wheel house trim (A).

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
