Hyundai Elantra: Interior Trim / Rear Pillar Trim

Components and components location

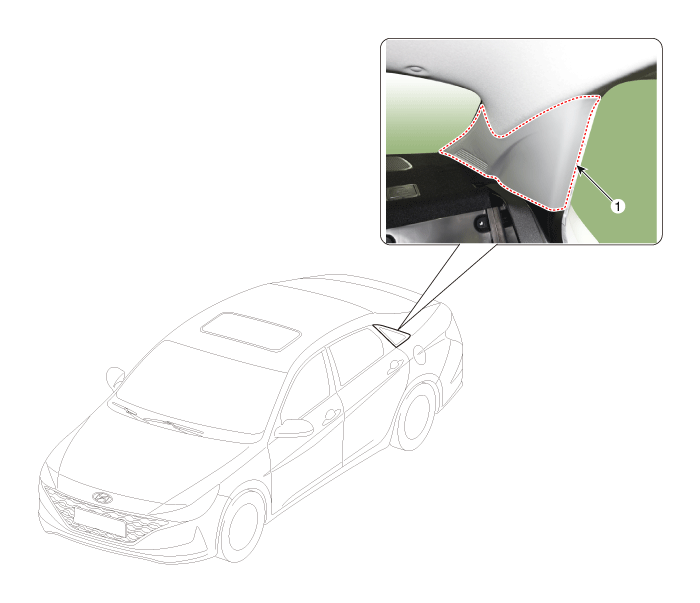

Component Location

1. Rear pillar trim


Repair procedures
Replacement

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Take care not to bend or scratch the trim and panels.
1.
Remove the rear door body side weatherstrip.
(Refer to Rear Door - "Rear Door Side Weatherstrip")
2.

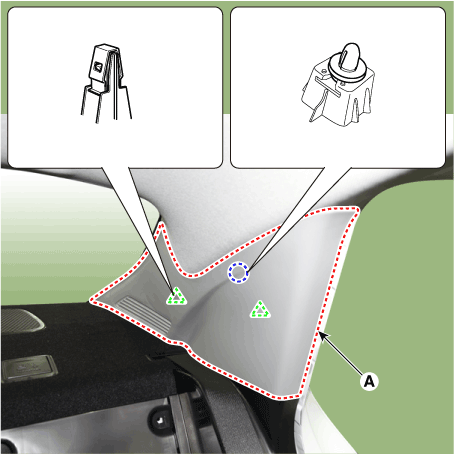

Using screwdriver or remover, remove the rear pillar trim (A).

3.
To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
