Hyundai Elantra: Rear Seat / Rear Seat Folding Lever

Components and components location

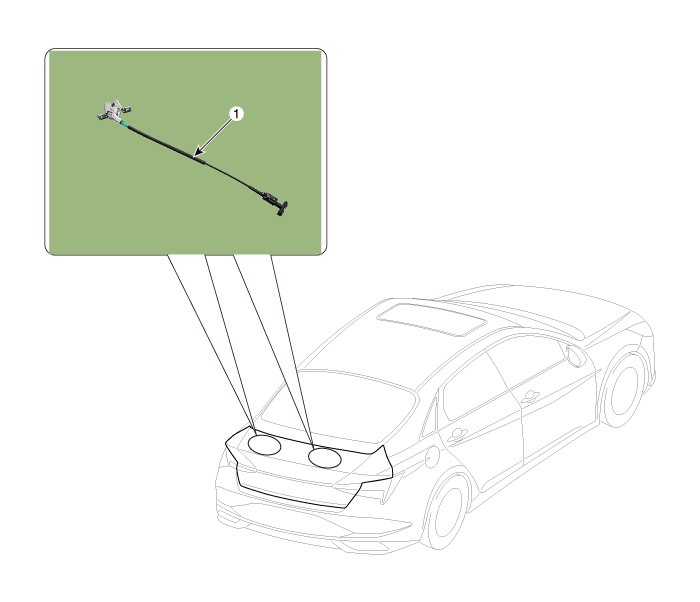

Components

1.Rear seat folding lever


Repair procedures
Replacement
1.

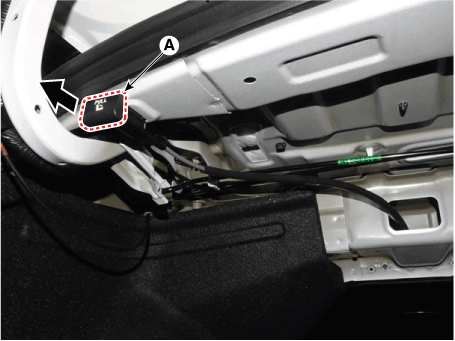

Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

2.

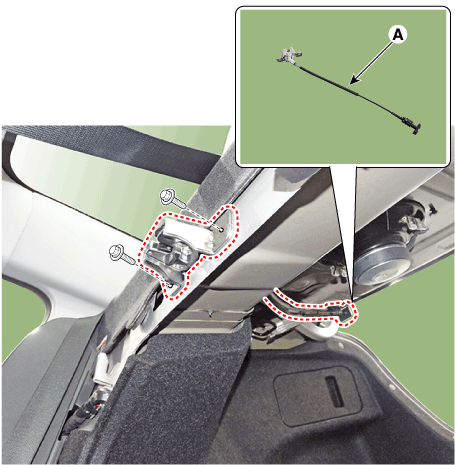

Loosen the mounting clips and bolts, remove the rear seat folding lever (A).

3.
To install, reverse the removal procedure.
