Hyundai Elantra: Rear Seat / Rear Seat Cushion Cover

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover

Components and components location

Component Location

[General type]

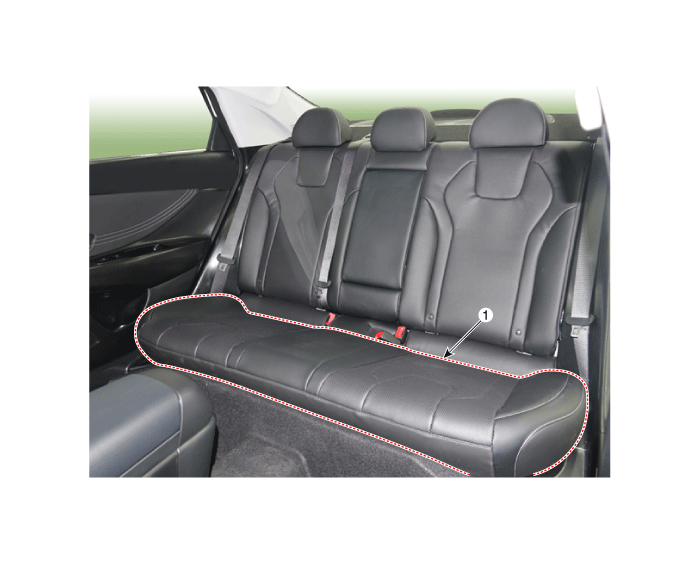

1. Rear seat cushion cover

[N Line]

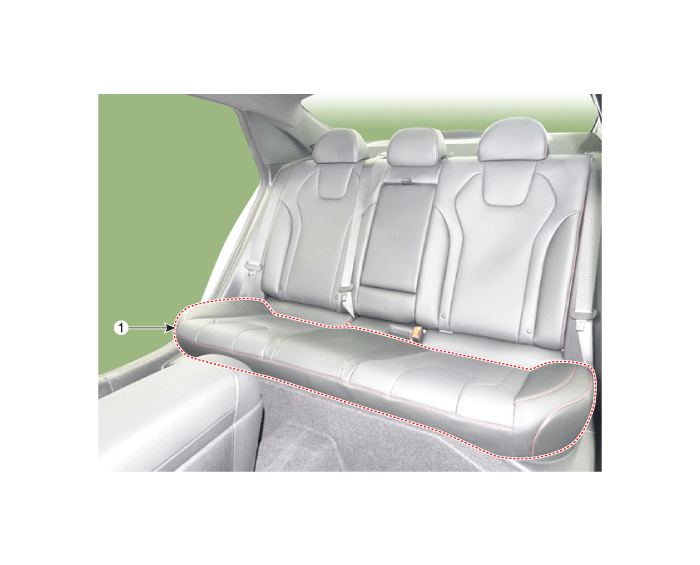

1. Rear seat cushion cover

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

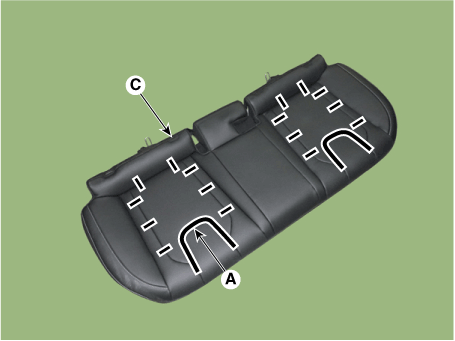

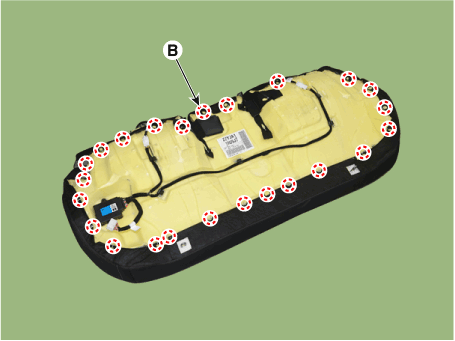

2.	After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C). [Front side] [Rear side]

To install, reverse the removal procedure.

•	Make sure that the connectors are connected completely.

•	Replace any damaged clips (or pin - type retainers).

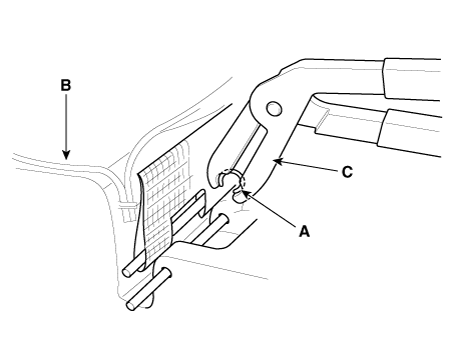

•	To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog - ring clips (A).

•	Replace the hog-ring clips with new ones using special tool (C) (09880 - 4F000).
