Hyundai Elantra: Rear Door / Rear Door Module

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module

Components and components location

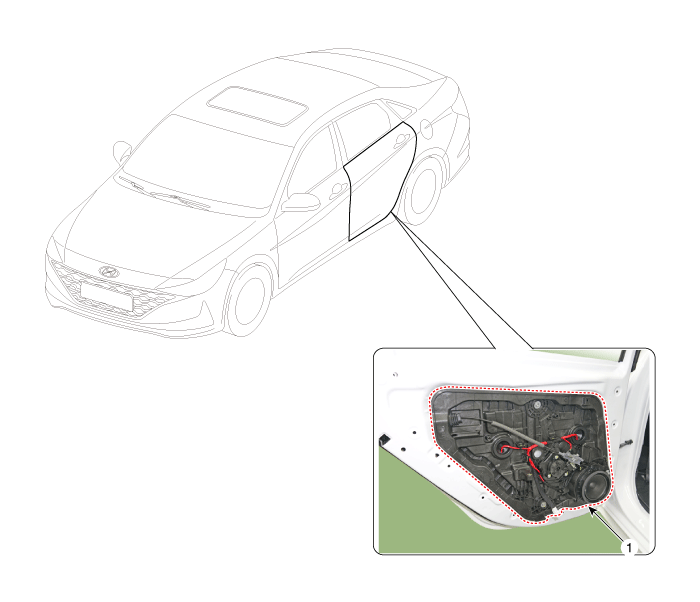

Component Location

1. Rear door module


Repair procedures
Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
3.

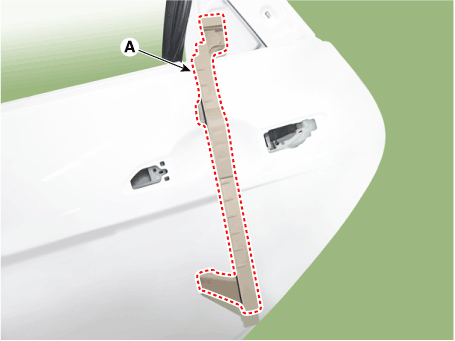

Loosen the mounting bolt and nut, remove the rear door channel (A).

4.

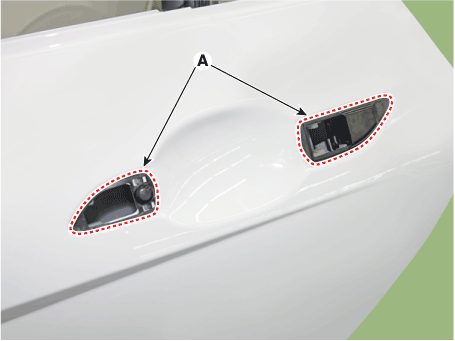

Remove the outside handle pad (A).

5.

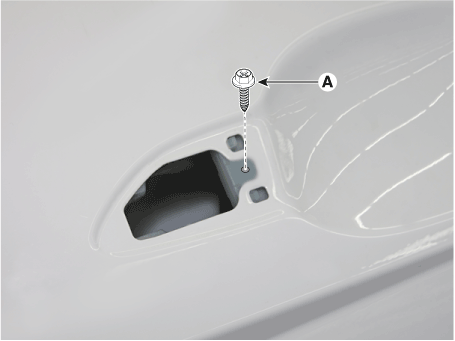

Loosen the rear door outside handle base mounting bolt (A).
Tightening torque :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

6.

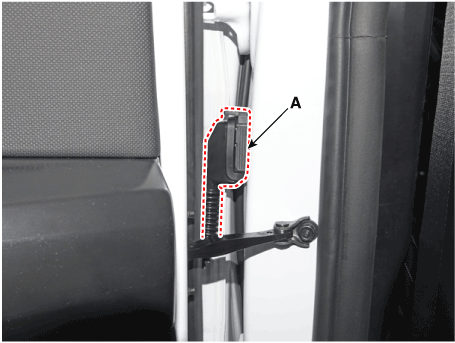

Press the lock pin, sepatate the rear door main connector (A).

7.

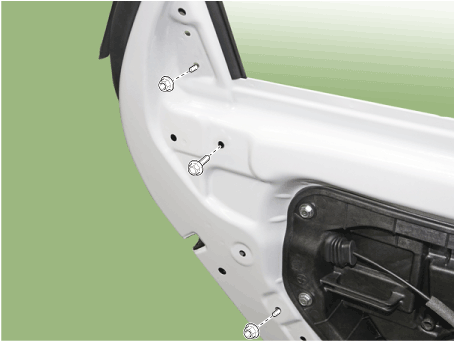

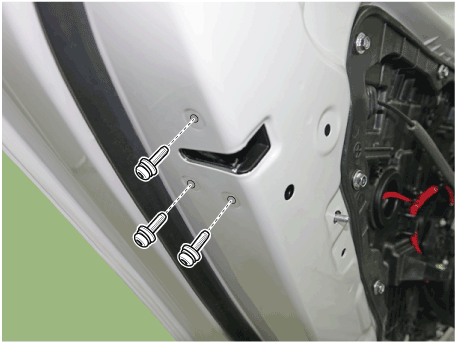

리Loosen the front door latch mounting screws.

8.

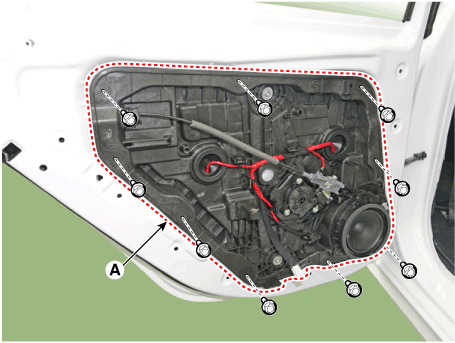

Loosen the mounting bolts and remove the rear door module (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

9.
To install, reverse the removal procedure.

•
Make sure connectors are connected properly and each rod is connected securely.
•
Make sure the door locks / unlocks and opens / closes properly.
