Tire Wear

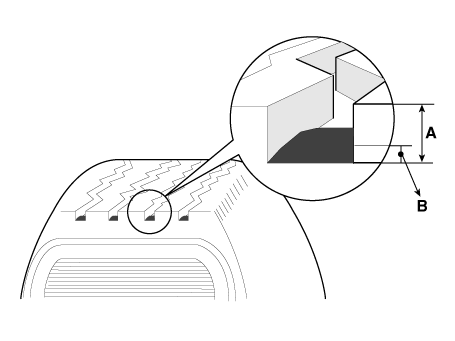

Measure the tread depth of the tires.

Tread depth [limit] : 1.6 mm (0.0630 in.)

If the remaining tread depth (A) is less than the limit, replace the tire.

•	When the tread depth of the tires is less than 1.6 mm(0.063 in), the wear indicators (B) will appear.

Removal

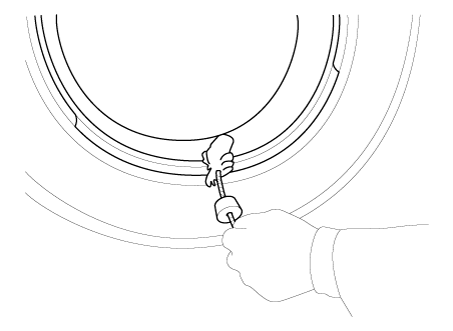

1.	Remove valve core and deflate the tire.

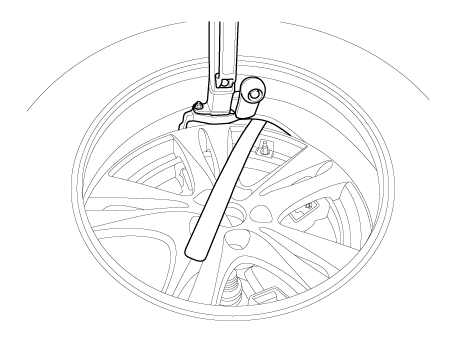

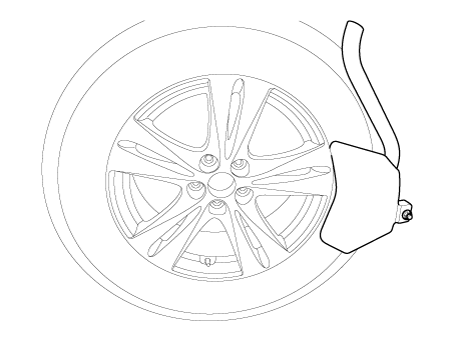

Remove the side of the tire bead area from the wheel using tire changing machine .

•	Check that the bead breaker is sufficiently spaced from the TPMS sensor.

•	Beads are removed at 90, 180, and 270 degrees from the valve.

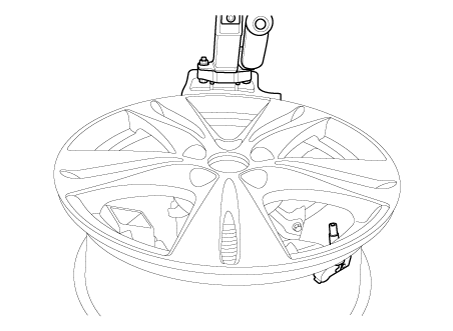

Rotate the wheel clockwise.

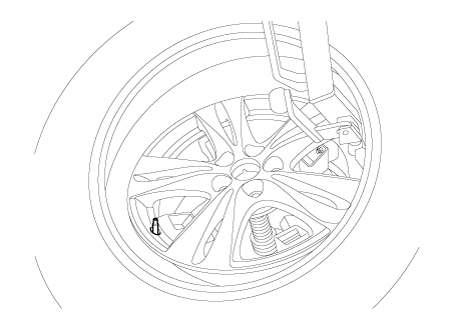

•	Position the TPMS sensor at 12 o'clock from the head of the tire changer.

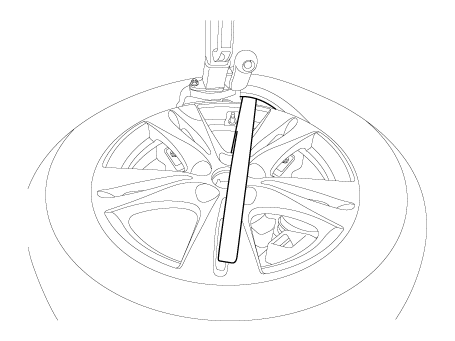

•	Do not impact the sensor when lifting the bead with a lever.

Installation

Apply tire soap or lubrication to the top and bottom tire beads.

•	When changing the wheel, do not reuse the snap-in type TPMS sensor.

2.	To fit the bottom bead, position the valve at the 5 o’clock position relative to the head on the tire changing machine.

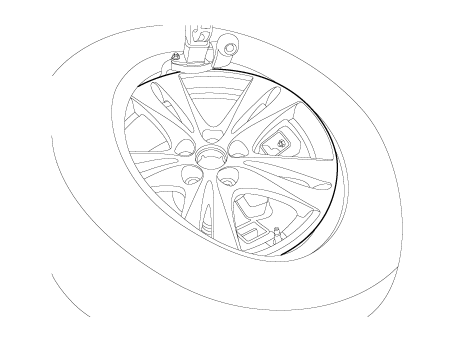

Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o’clock). Rotate the rim clockwise, and push down on the tire at the 3 o’clock position to fit bottom bead.

•	Reach the tire on the wheel so that the beads touch the rim edge (6 o'clock) behind the sensor.

4.	Push down on the tire at the 3 o’clock position and rotate the rim clockwise to fit the top bead.

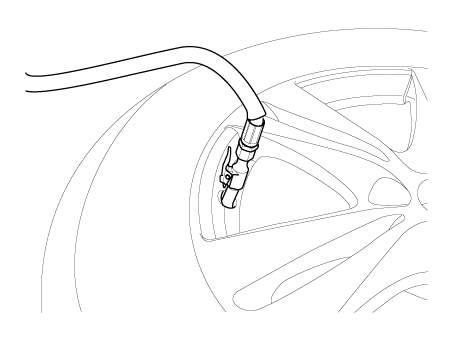

Inflate the tire until beads seat.

Recommended Tire pressure : Refer to "Specification"

Tire Rotation

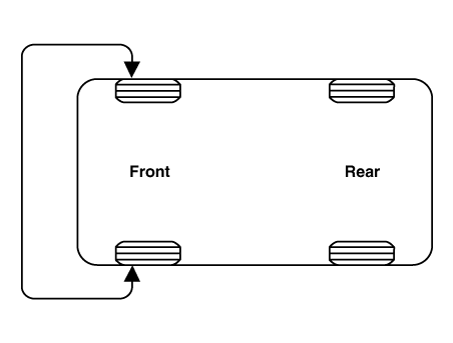

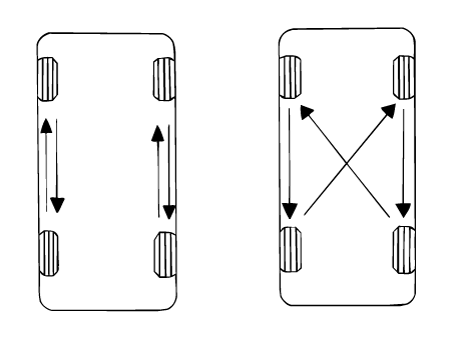

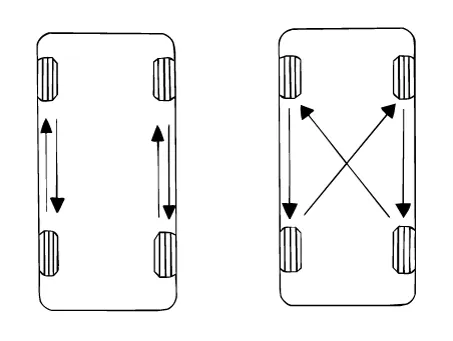

Replace the tire in the direction of the arrow shown in the figure.

Checking For Pull And Wander

If the steering pulls to one side, rotate the tires according to the following wheel rotation procedure.

1.	Rotate the front right and front left tires, and perform a road test in order to confirm vehicle stability.

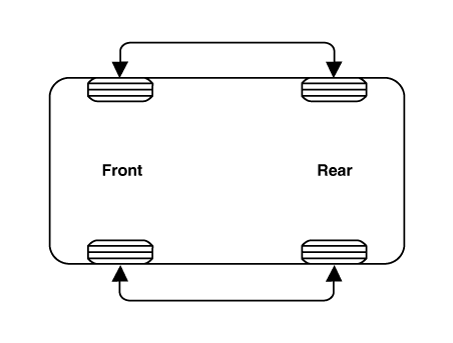

2.	If the steering pulls to the opposite side, rotate the front and rear tires, and perform a road test again.

3.	If the steering continues to pull to one side, rotate the front right and left tires again, and perform a road test.

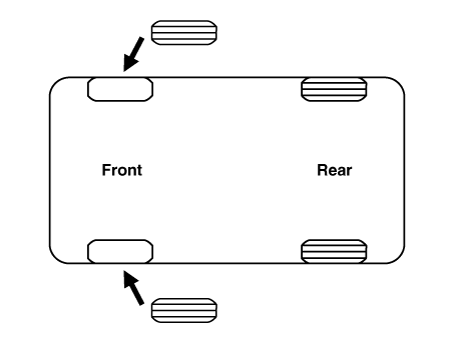

4.	If the steering continues to pull to the opposite side, replace the front wheels with new ones.
