Hyundai Elantra: Rear Door / Rear Door Belt Outside Weatherstrip

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip

Repair procedures

Replacement

1.	Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

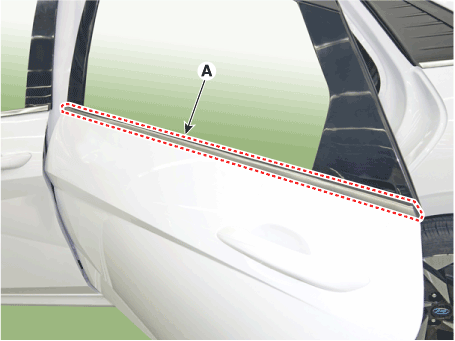

2.	Remove the rear door belt outside weatherstrip (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
