Hyundai Elantra: Lighting System / High Mounted Stop Lamp

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear package tray trim.
(Refer to Body - "Rear Package Tray Trim")
3.

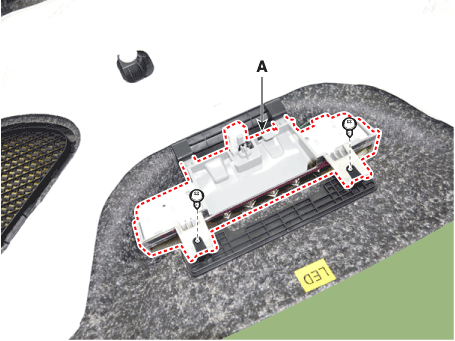

Loosen the mounting screws and remove the high mounted stop lamp (A).

Installation
1.
Install the high mounted stop lamp.
2.
Install the rear package tray trim.
3.
Connect the negative (-) battery terminal.
