Hyundai Elantra: Lighting System / Rear Combination Lamp
Repair procedures
Outside Combination Lamp
1. | Disconnect the negative (-) battery terminal. |

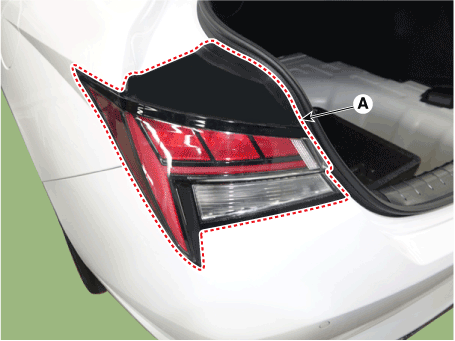

2. | Remove the combination lamp cover (A).
|

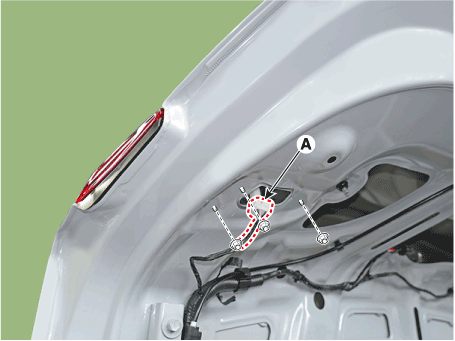

3. | Disconnect the rear combination lamp connector (A).
|
4. | Loosen the mounting nuts and remove the rear conbination lamp (A).

|

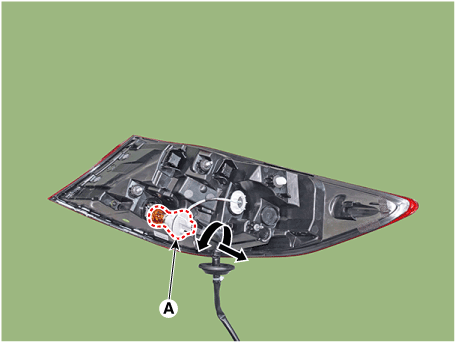

5. | Remove the socket (A) and replace the bulb (B).

|
Inside Combination Lamp
1. | Disconnect the negative (-) battery terminal. |

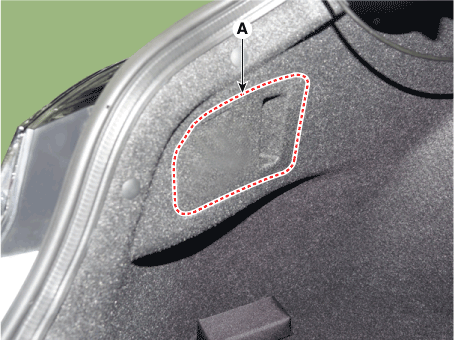

2. | Remove the trunk lid trim. (Refer to Body - "Trunk Lid Trim") |

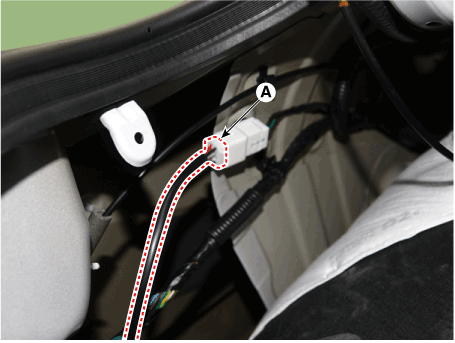

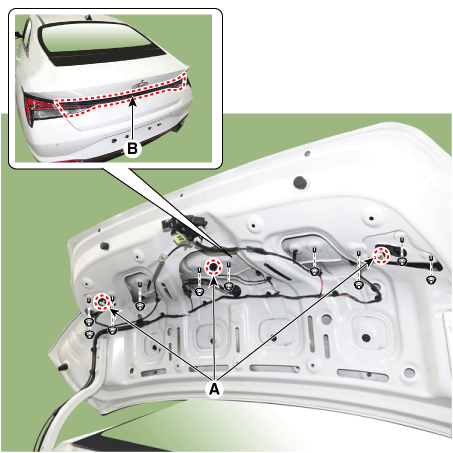

3. | Disconnect the rear inside combination lamp connectors and trunk lid button connector (A). |

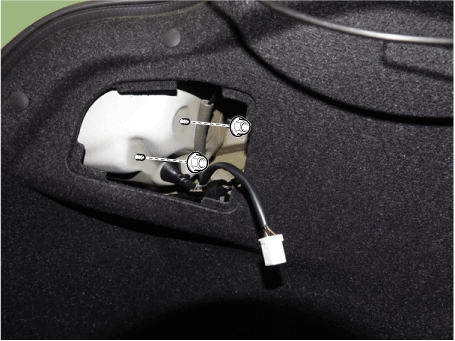

4. | Loosen the mounting nuts and remove the rear inside combination lamp (B).
|

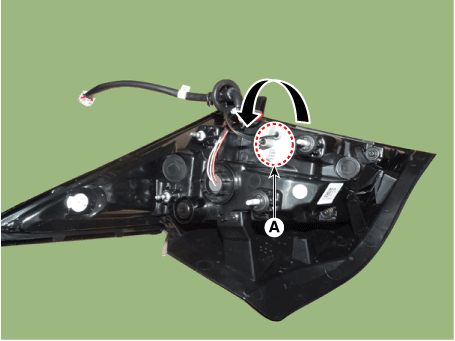

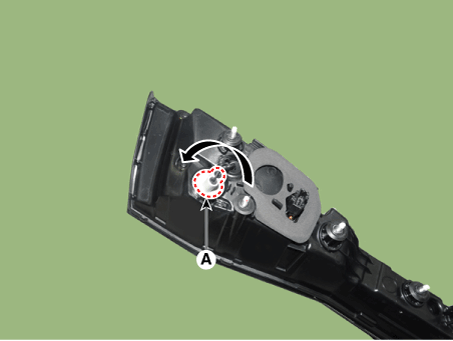

5. | Remove the rear inside combination lamp sockec [back-up lamp] (A) and replace the bulb (B).

|

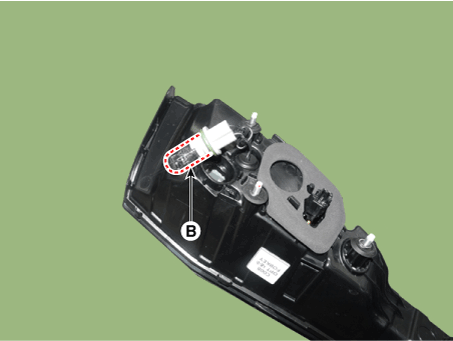

6. | Remove the rear inside combination lamp sockec [tail lamp] (A) and replace the bulb (B).
|
Outside Combination Lamp
1. | Turn the head lamp power off. |
2. | Remove the bulb socket and turn signal lamp bulb (A) from the lamp assembly.
|
Inside Combination Lamp
1. | Turn the head lamp power off. |
2. | Remove the trunk lid trim. (Refer to Body - "Trunk Lid Trim") |

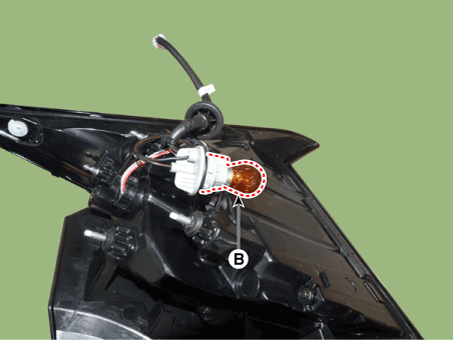

3. | Remove the bulb socket and turn signal lamp bulb (A) from the lamp assembly.
|
1. | Connecting the lamp connector. |
2. | Install the inside/outside rear combination lamp assembly. |
3. | Install the trunk lid trim. [Inside combination lamp only] |
