Hyundai Elantra: Body Side Molding / Front Wheel Guard

Repair procedures
Replacement

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
1.
Remove the front tire.
2.

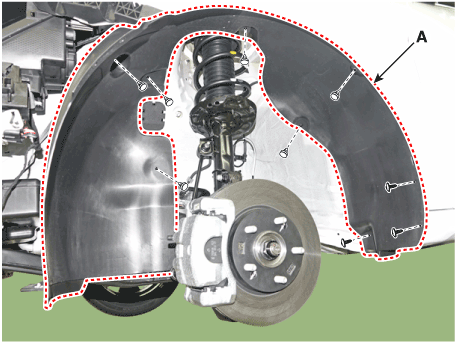

After loosening the mounting clips and remove the front wheel guard (A).

3.
To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
