Hyundai Elantra: Front Seat / Front Seat Assembly

Components and components location
Component Location
[General type]

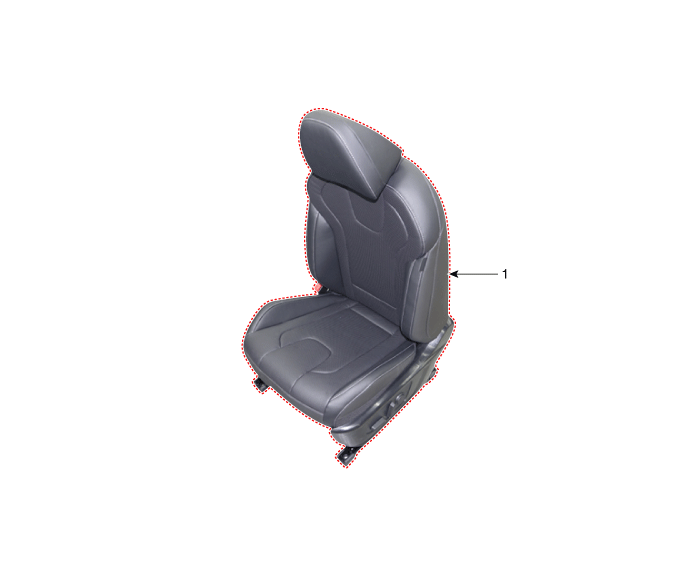

1. Front seat assembly


[N Line]

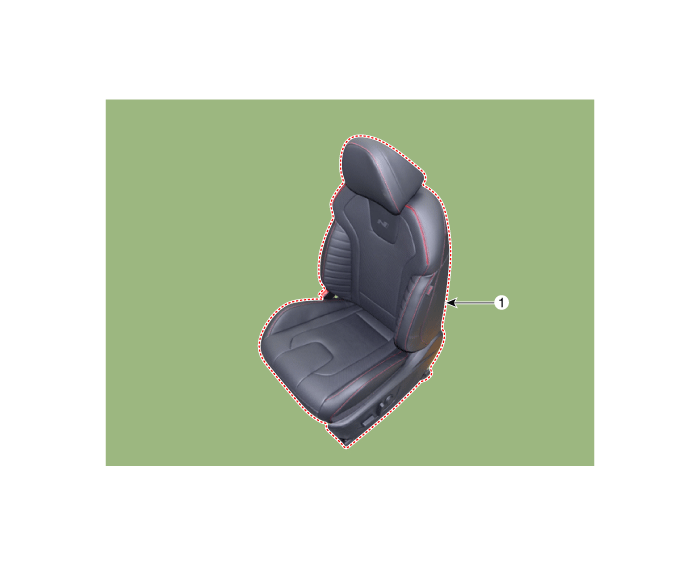

1. Front seat assembly


Repair procedures
Replacement
1.

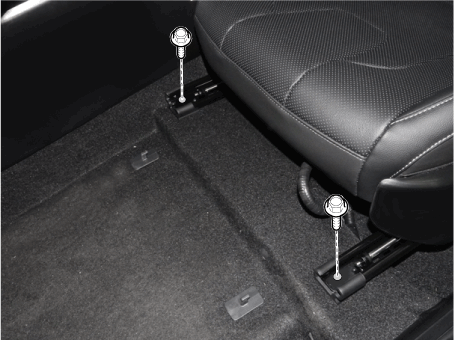

Loosen the front seat mounting bolts.
Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
[Front]

[Rear]

2.

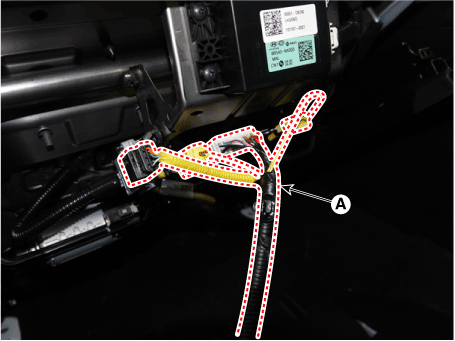

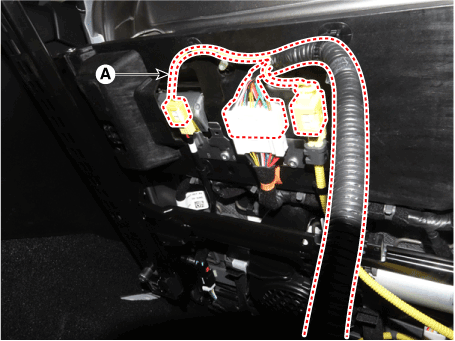

Press the lock pin, separate the connectors (A).

3.
To install, reverse the removal procedure.

The installation procedures of seat mounting bolts
Push the seat to the rear end of slides and initially tighten the front mounting bolts.
Push the seat to the front end of slides and completely tighten the rear mounting bolts.
Send the seat to the rear end again to completely tighten the front mounting bolts.
Check the seat for smooth movement.
For the non - automatic slide seats, check the seats are fixed at each designated fixing position.

    Front Seat

    ..

    Front Seat Shiled Outer Cover

    Components and components location Component Location [General type]1. Front seat shield outer cover[N Line]1. Front seat shield outer cover Repair procedures Replacement    • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
