Hyundai Elantra: Button Engine Start System / Components and components location

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Button Engine Start System / Components and components location

Component Location

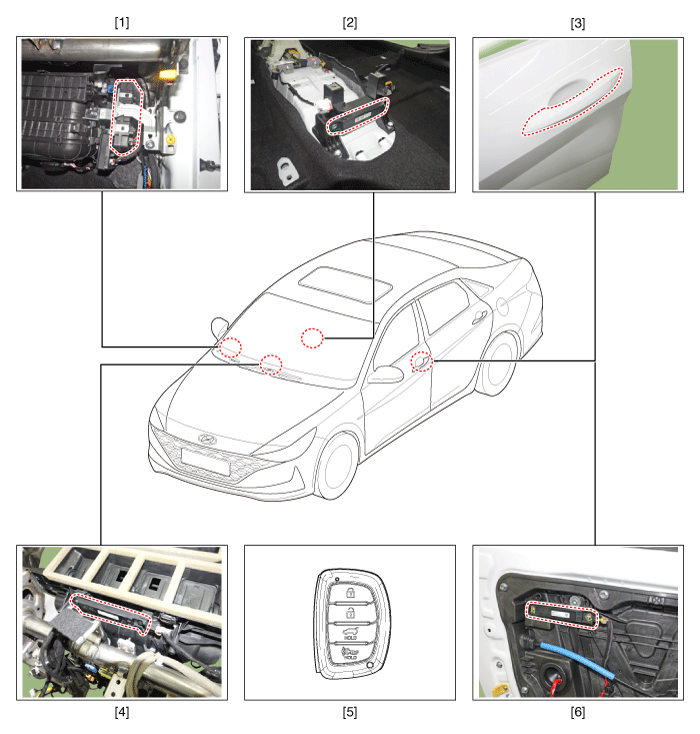

1. Smart key unit (IBU)
2. Interior antenna 2
3. outside door handle

4. Interior antenna 1
5. FOB Key
6. Door antenna

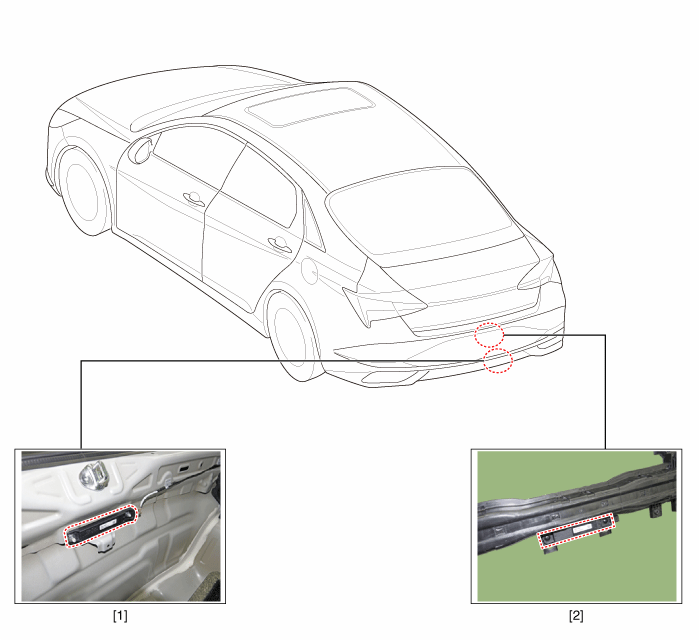

1. Bumper antenna

2. Trunk antenna

Description and operation

DescriptionSystem OverviewThe System offers the following features:– Human / machine interface through a 1-stage button, for terminal switching and engine start...

Start/Stop Button

Components and components location Component Repair procedures Removal1.Disconnect the negative(-) battery terminal.2.Remove the AVN Head unit...
