Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Seat / Components and components location

Components

[General type]

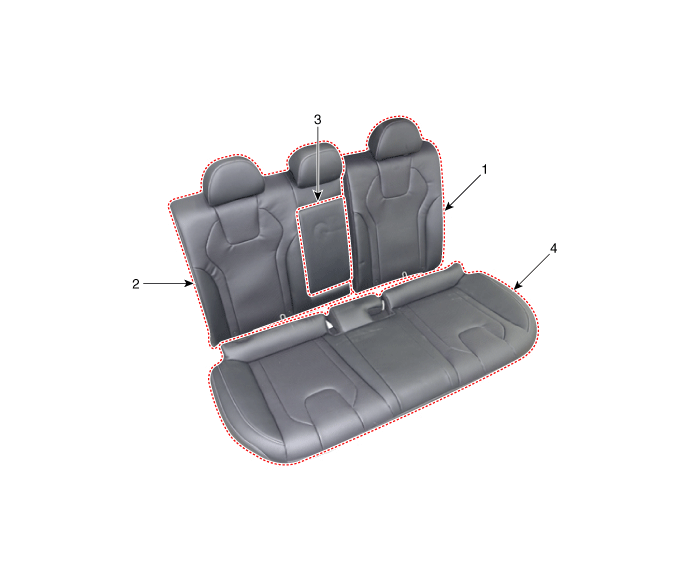

1. Rear seat back assembly [LH]
2. Rear seat back assembly [RH]

3. Rear seat back armrest
4. Rear seat cushion assembly

[General type]

1. Rear seat back assembly [LH]
2. Rear seat back assembly [RH]

3. Rear seat back armrest
4. Rear seat cushion assembly

Rear Seat Assembly

Components and components location Component Location [General type]1. Rear seat cushion assembly2. Rear seat back assembly[N Line]1. Rear seat cushion assembly2...
