| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the front bumper. (Refer to Body - "Front Bumper Cover") |
| 3. | Remove the head lamp. |

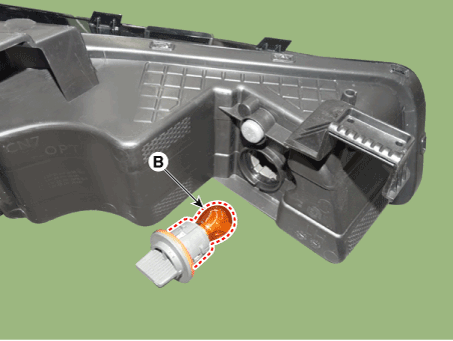

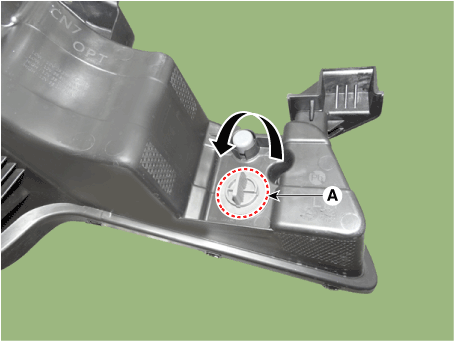

| 4. | Remove the bulb socket (A) and turn signal lamp bulb (B) from the lamp assembly.
|
| Replacement |
| 1. | Turn the head lamp power off. |
| 2. | Remove the engine room under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover") |

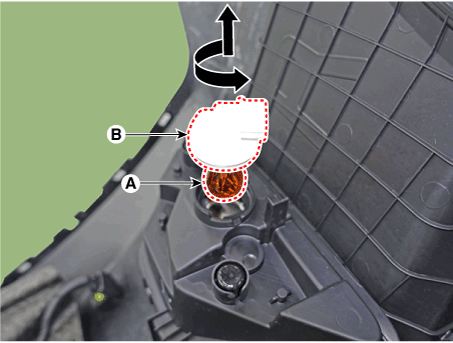

| 3. | Remove the bulb socket (B) and turn signal lamp bulb (A) from the lamp assembly.
|
| Installation |
| 1. | Install the turn siganl lamp assembly. |
| 2. | Install the head lamp. |
| 3. | Install the front bumper. |
| 4. | Connect the negative (-) battery terminal. |
