Hyundai Elantra: Blower / Blower Motor

Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Motor

Repair procedures

Inspection

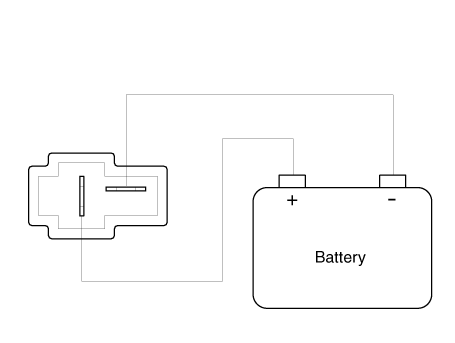

1.	Connect the battery voltage and check the blower motor rotation.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

3.	To install, reverse the removal procedure
