Hyundai Elantra: Sunroof / Sunshade
.png)

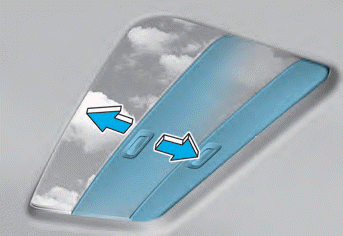

The sunshade will open automatically
with the sunroof when the glass panel
moves. If you want it closed, move the
sunshade manually.
NOTICE
The sunroof is made to slide together
with the sunshade. Do not leave the
sunshade closed while the sunroof is
open.
Tilt the sunroof open:
Push the sunroof control lever upward
until the sunroof moves to the desired
position.
To close the sunroof:
Press the sunroof lever forward until the
sunroof moves to the desired position...
The sunroof may need to be reset if the
following conditions occur:
-- The battery is discharged or
disconnected or the sunroof fuse has
been replaced or disconnected...
