Hyundai Elantra: Engine Electrical System / Specifications

Specification
Ignition System
Ignition Coil
Item
Specification
Primary Coil Resistance (Ω)
0.75 ± 15% [20°C (68°F)]
Secondary Coil Resistance (kΩ)
5.9 ± 15% [20°C (68°F)]

Spark Plug
Item
Specification
Type
SILZKR8J8GS
Gap
0.7 - 0.8 mm
(0.0275 - 0.0314 in.)

Charging System
Alternator
Item
Specification
Rated voltage
13.5V, 130A
Speed in use
1,000 - 18,000 rpm
Voltage regulator
IC Regulator built-in type

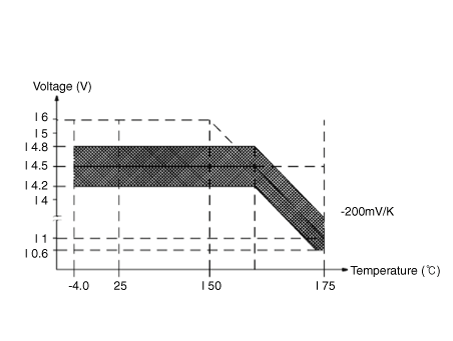

Regulator Setting Voltage
External mode
10.6 - 16 ± 0.3V
Internal mode
14.55 ± 0.3V
Temperature Gradient
External mode
0 ± 2 mV / °C
Internal mode
-3.5 ± 2mV / °C

Battery
▶CMF68L-DIN
Item
Specification
Model type
CMF68L-DIN
Capacity [20HR/5HR] (AH)
68 / 54
Cold Cranking Amperage (A)
760 (SAE / EN)
Reserve Capacity (Min)
110

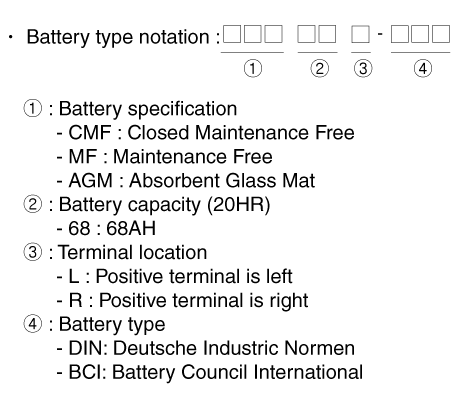

Model type description

Cold Cranking Ampere (CCA) : Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
The higher the CCA rating, the greater the starting power of the battery.
RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Battery Sensor
Item
Speccification
Rated voltage (V)
12 - 14
Dark current (uA)
300
Pin
2 (B+, LIN)

Starting System
Starter
Item
Specification
Rated voltage
12V, 0.9kW
The number of pinion teeth
10
Performance
[No-load, 11V]
Ampere
83.6A
Speed
Min. 3500rpm

    Troubleshooting

    T..
