Hyundai Elantra: Integrated Body Control Unit (IBU) / Schematic diagrams
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Integrated Body Control Unit (IBU) / Schematic diagrams
| Circuit Diagram |

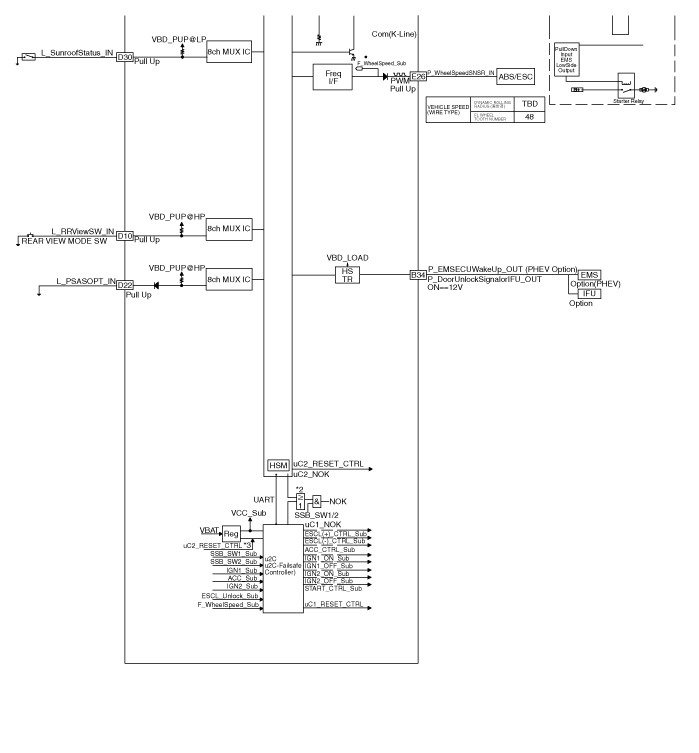

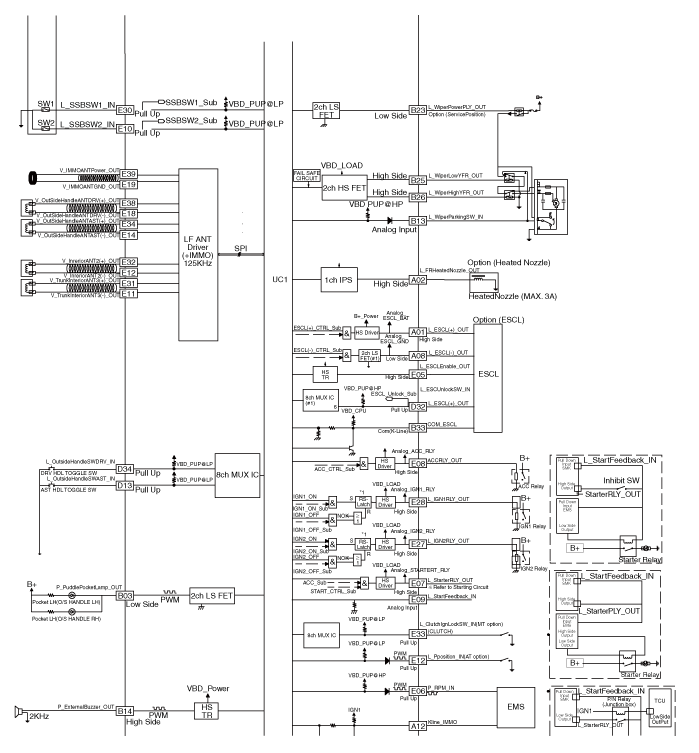

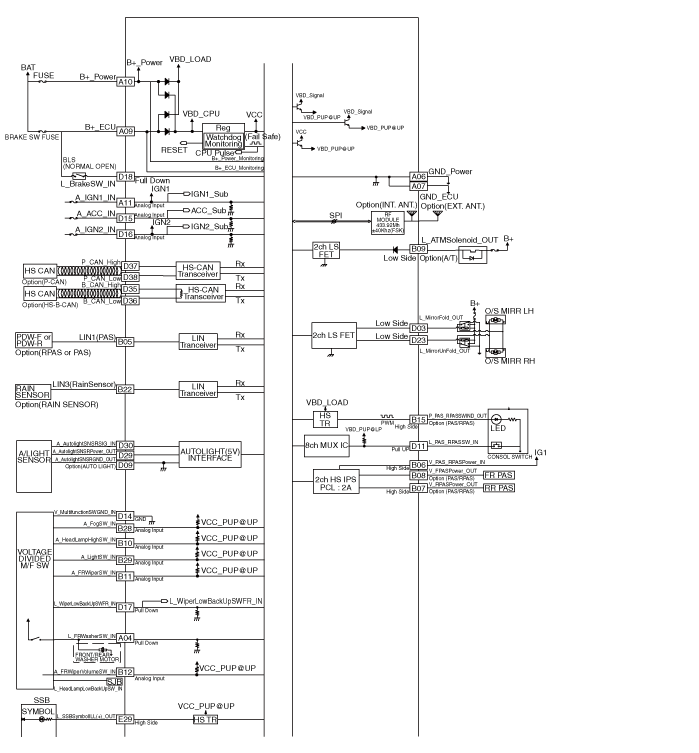

With Smart Key

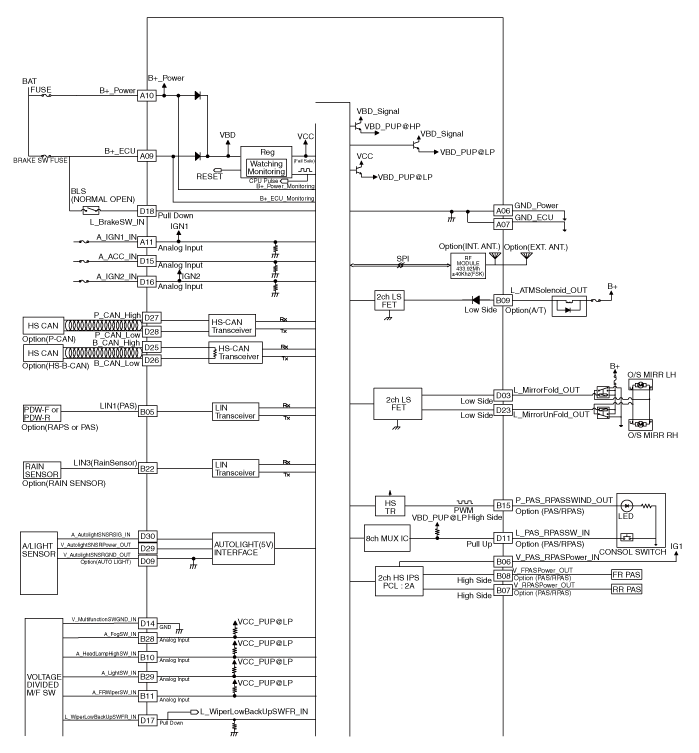

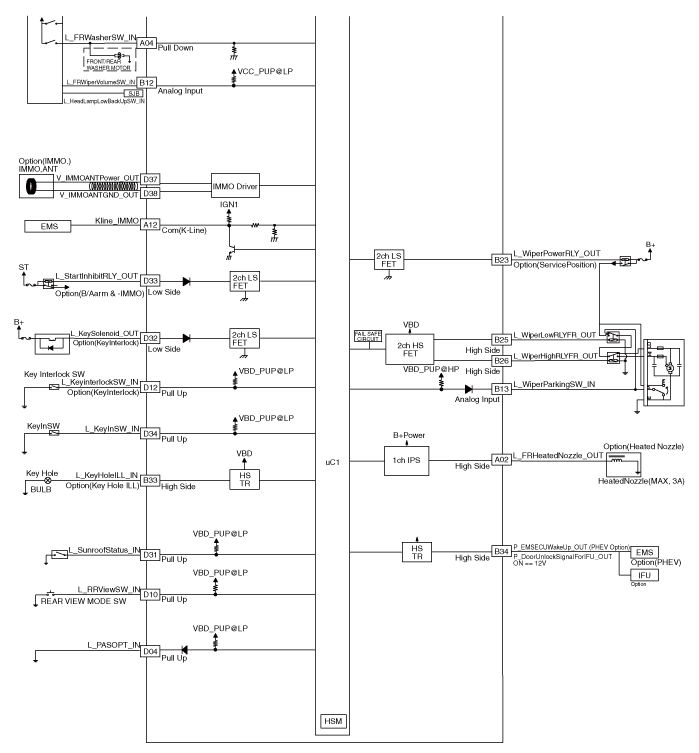

Without Smart Key
Specifications
Specifications
Items
Specifications
Rated voltageDC 12VOperating voltageDC 9 - 16VOperating temperature-40°C to 85°C (-22°F to 185°F)parastic current4...
Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the glove box housing cover.(Refer to Body - "Glove Box Housing Cover")3.Remove the IBU unit (A) after loosening mounting nuts...
