Hyundai Elantra: Head Restraints / Rear seat head restraints

Hyundai Elantra (CN7) 2021-2025 Owner's Manual / Seats & Safety System / Seats / Head Restraints / Rear seat head restraints

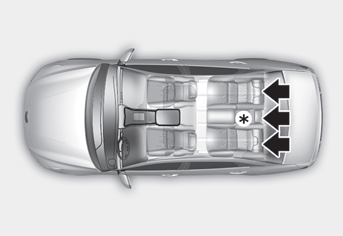

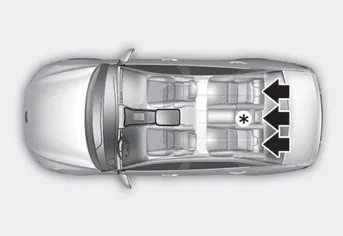

The rear seats are equipped with head restraints in all the seating positions for the passenger’s safety and comfort.

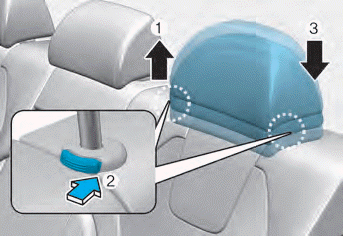

Adjusting the height up and down

To raise the head restraint:

1. Pull it up to the desired position (1). To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).
