Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Repair procedures
Replacement

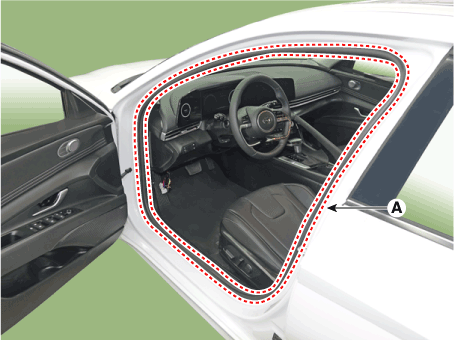

[Front door side weatherstrip]
1.

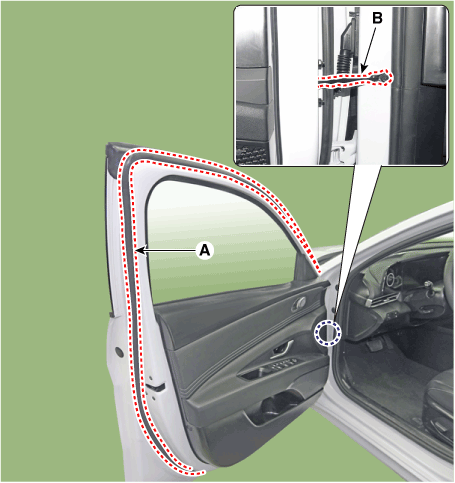

Loosen the front door checker (B) mounting bolt.
Tightening torque :
18.6 - 28.4 N.m (1.7 - 2.2 kgf.m,13.7 - 21.0 lb-ft)
2.
Detach the clips, then remove the front door side weatherstrip (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
[Front door body side weatherstrip]
1.

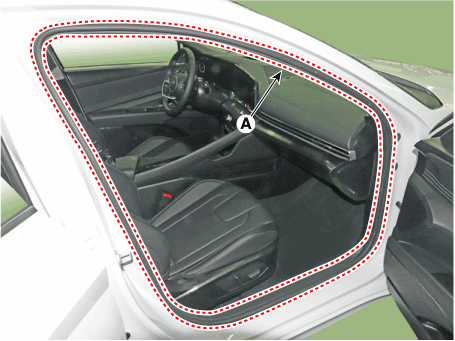

Detach the clips, then remove the front door body side weatherstrip (A).
[LH]

[RH]

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).
