Hyundai Elantra: Emergency Call System / Emergency Call (eCall) Button

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Button

Components and components location

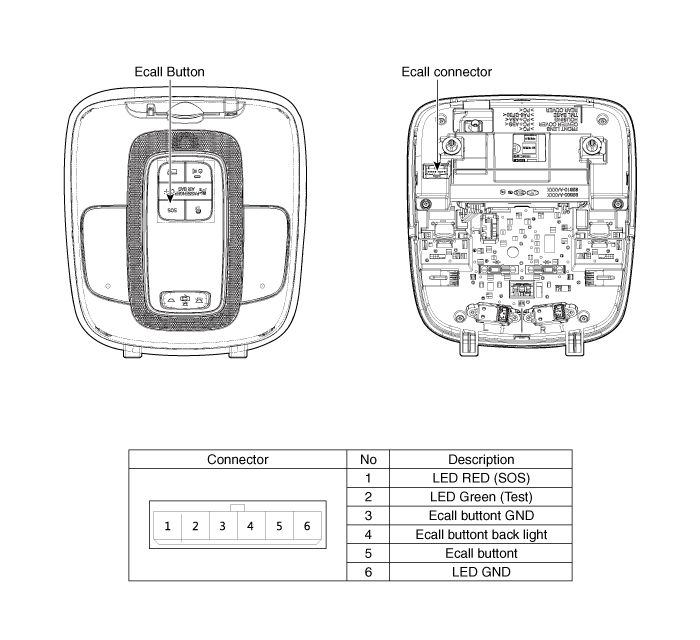

Component

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

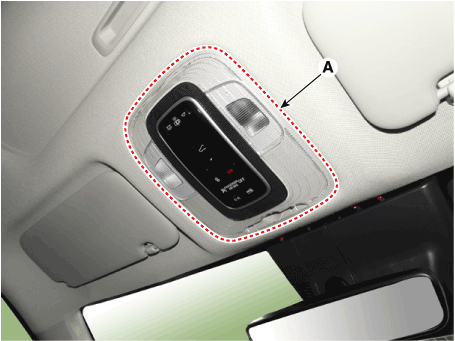

2.	Using a remover and remove the overhead console (A).

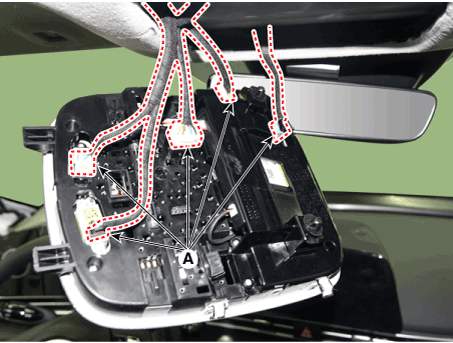

3.	Disconnect the overhead console connectors (A).

Installation

1.	Install the eCall button and button cover.

2.	Install the overhead console assembly after connecting the connector.

3.	Connect the negative (-) battery terminal.
