Hyundai Elantra: Windshield Wiper/Washer / Components and components location
Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and components location

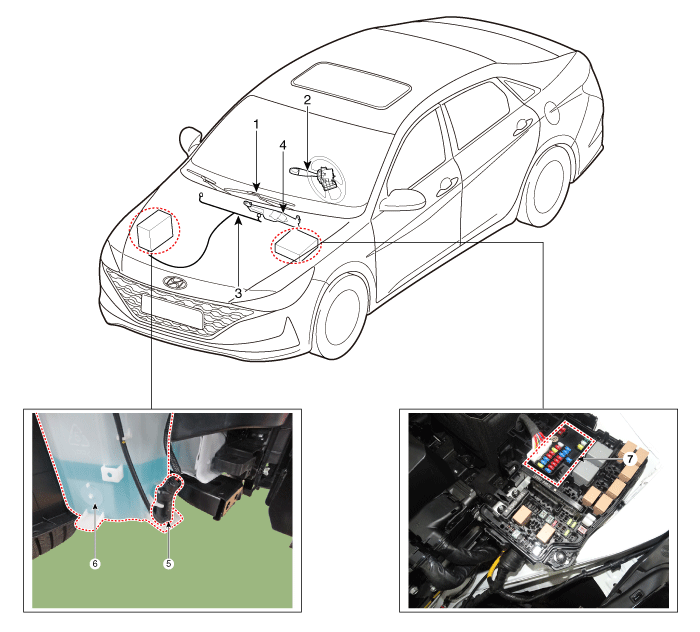

| Component Location |
| 1. Windshield wiper arm & blade 2. Wiper & washer switch 3. Windshield washer hose & nolzzle 4. Washer motor & linkage assembly | 5. Washer motor 6. Washer reservoir 7. Wiper/Washer relay (Built - in PCB block) |
Windshield Wiper-Washer Switch
Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.If it is necessary to remove multifunction switch assembly, remove the steering wheel...
