Hyundai Elantra: AVN System / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / AVN System / Components and components location

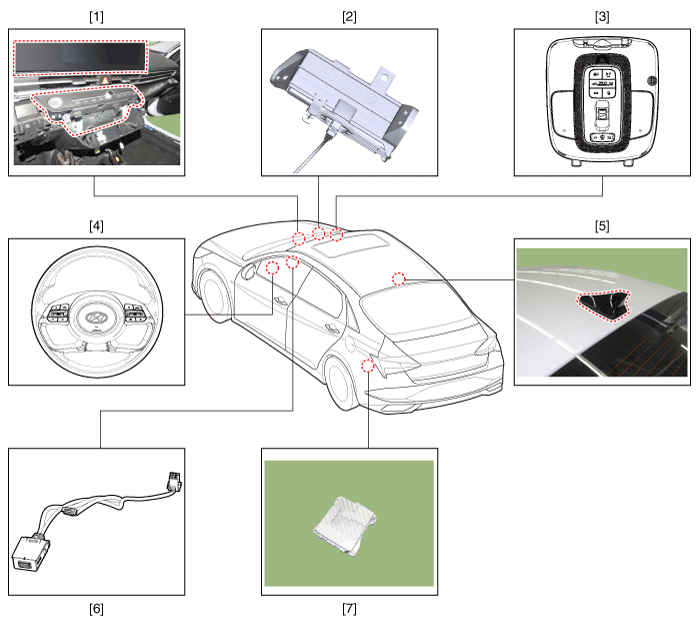

Component Location

1. AVN head unit
2. Crash pad antenna
3. Bluelink keyboard & Hands-free mic (Built-in overhead console)
4. Steering wheel remote control

5. Roof antenna
6. USB jack
7. External amplifier (Option)

Description and operation

DescriptionAVN SystemThe AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information...

AVN(Audio Video Navigation) head unit

Components and components location ComponentsMiddle EastConnector Pin Information No Connector A (Int AMP) Connector A (Ext AMP) Connector B 1Rear left speaker (+)--2Reart left speaker (-)-MIC Signal (+)3-AMP Navi Voice (+)-4-AMP SPDIF (HI)-5--Antenna Powr6Camera PowerCamer..
