Hyundai Elantra: Clutch System / Regulator
Components and components location
Components and Components Location |
[Gasoline 1.6 MPI / Gasoline 2.0 MPI] |

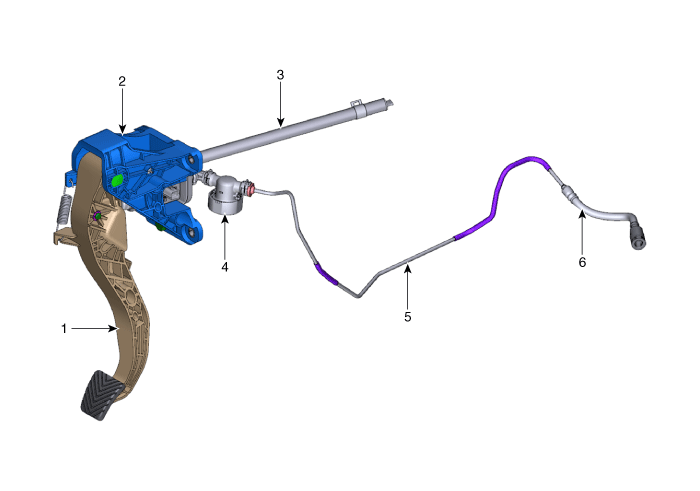

1. Clutch pedal arm 2. Clutch pedal assembly 3. Reservoir hose
| 4. Regulator 5. Cluch tube 6. Clutch hose
|

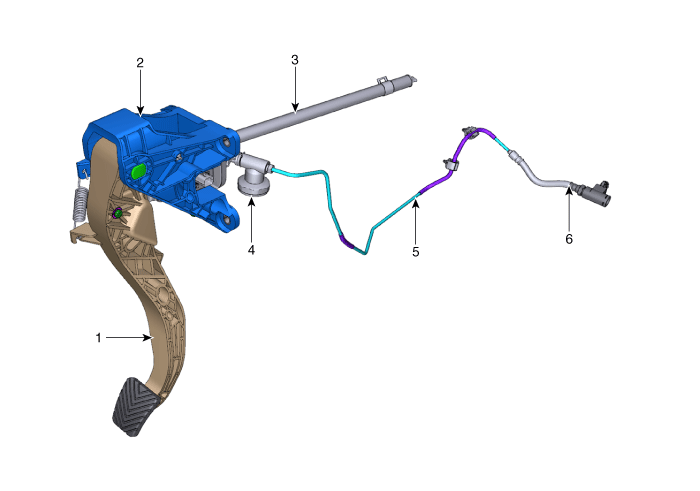

1. Clutch pedal arm 2. Clutch pedal assembly 3. Reservoir hose
| 4. Regulator 5. Cluch tube 6. Clutch hose
|
Repair procedures
1. | Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
2. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |

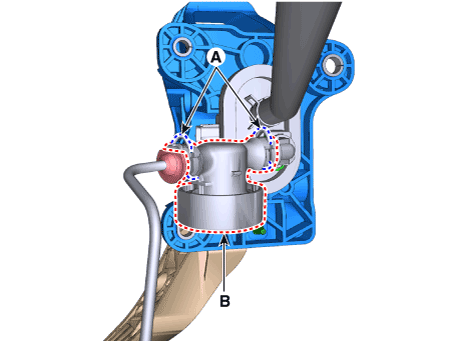

3. | Pull the snap pins (A) and then removing the regulator (B). [Gasoline 1.6 MPI / Gasoline 2.0 MPI] •
| Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water. |
|

|
4. | Pull the snap pin (B) after separate the clutch tube (A) and Remove the regulator (C). [Gasoline 1.6 T-GDI] •
| Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water. |
|

|
1. | To install, reverse the removal procedures. •
| Be careful not to enter dust, foreign matters, etc in regulator. |
•
| When installing, apply grease on a O-ring part of regulator connector. |
•
| Replace the O-ring with new when install the clutch regulator. |
|
|
2. | After be equipped, perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid. (Refer to Clutch System - "Concentric Slave Cyilnder Assembly") |
1. | Check the clutch tube for fluid leakage. |
2. | Check the clutch tube for strain and damage. |
