Hyundai Elantra: Front Seat Belt / Components and components location

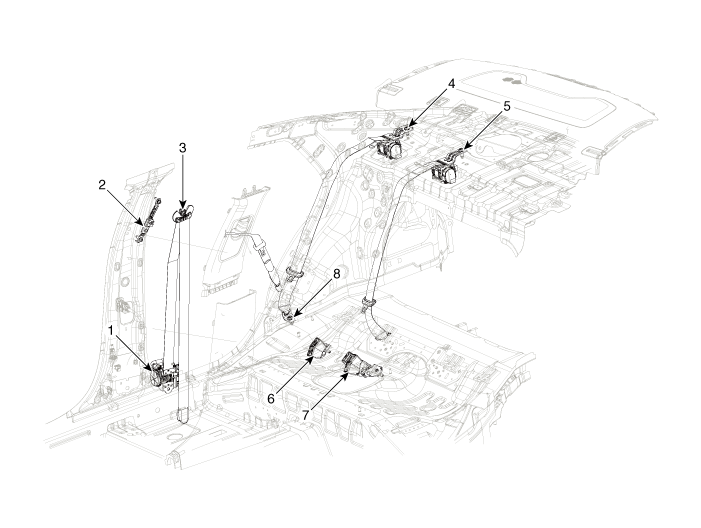

Components

1. Front seat belt retractor
2. Height adjust
3. Front seat belt upper anchor
4. Rear seat belt retractor [RH]
5. Rear seat belt retractor [CTR]
6. Seat belt buckle [RH]
7. Seat belt buckle [LH, CTR]
8. Rear Seat belt lower anchor

    Front Seat Belt

    ..

    Front Seat Belt Pretensioner

    Components and components location Components Location1. Front seat belt pretensioner Repair procedures Replacement    • When installing the belt, make sure not to damage the pretensioner...
