Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

Components

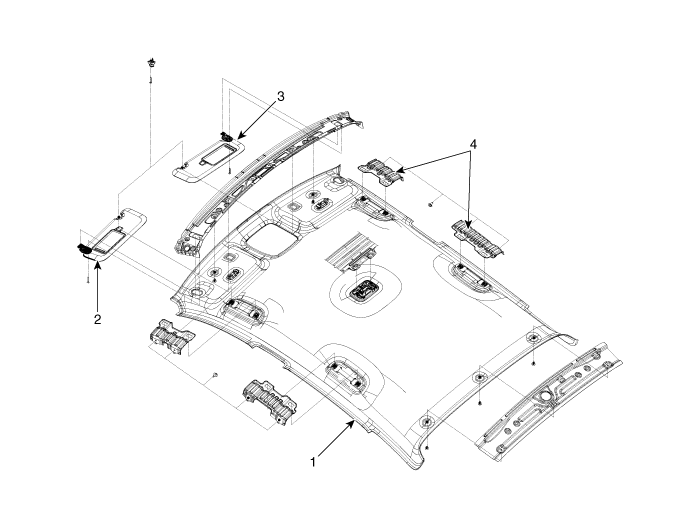

[General Type]

1 . Roof trim
2 . Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket

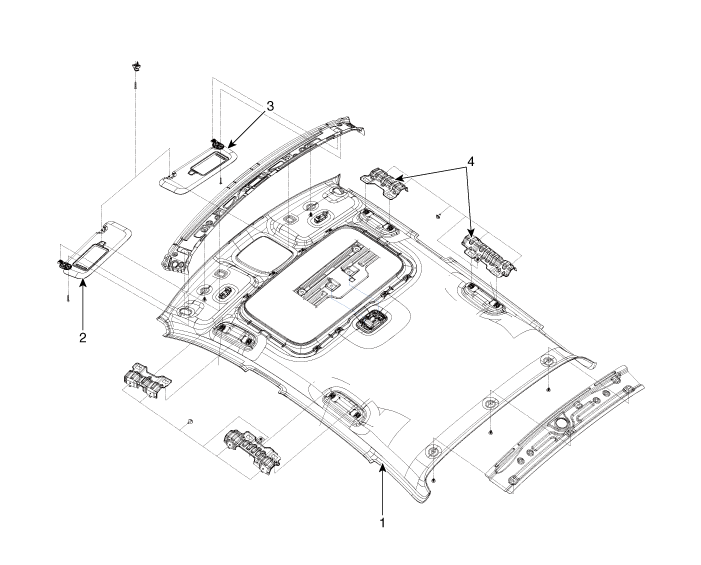

[Sunroof Type]

1 . Roof trim
2 . Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket
