Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Components and components location

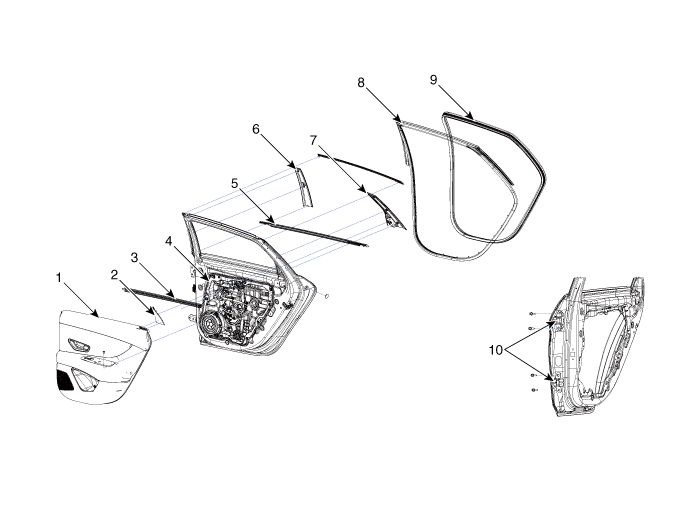

Components

1. Rear door trim
2. Rear door delta inner cover
3. Rear door belt inside weatherstrip
4. Rear door module
5. Rear door belt outside weatherstrip

6. Rear door frame garnish [RH]
7. Rear door frame garnish [LH]
8. Rear door body side weatherstrip
9. Rear door side weatherstrip
10. Rear door hinge

Repair procedures

AdjustmentGlass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary...
