Hyundai Elantra: Parking Brake System / Components and components location

Components

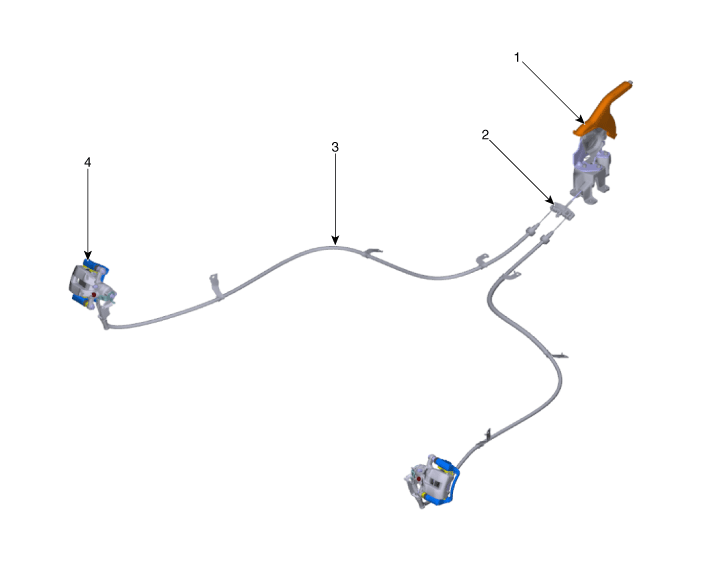

[G 1.6 MPI / LPI]

1. Parking brake lever
2. Equalizer assembly
3. Parking brake cable
4. Rear caliper

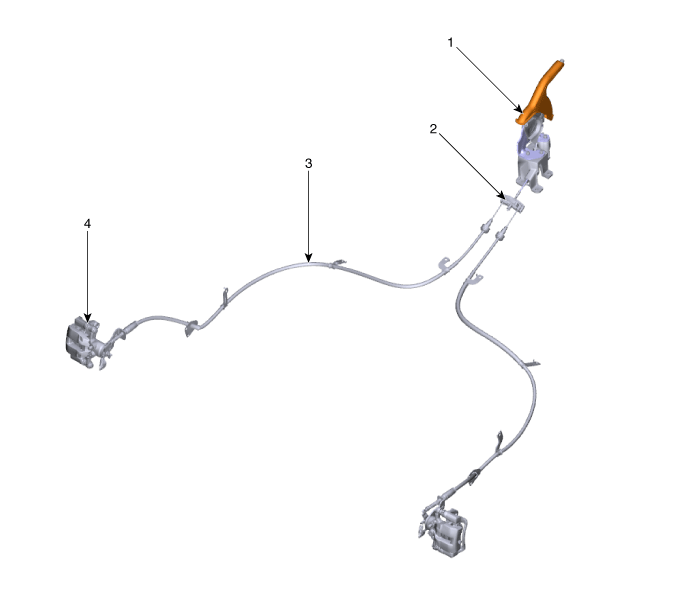

[G 1.6 T-GDI]

1. Parking brake lever
2. Equalizer assembly
3. Parking brake cable
4. Rear caliper

    Parking Brake System

    ..

    Parking Brake Lever

    Repair procedures Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Release the parking brake.3.Remove the floor console assembly...
