Hyundai Elantra: Emission Control System / Components and components location

Components Location

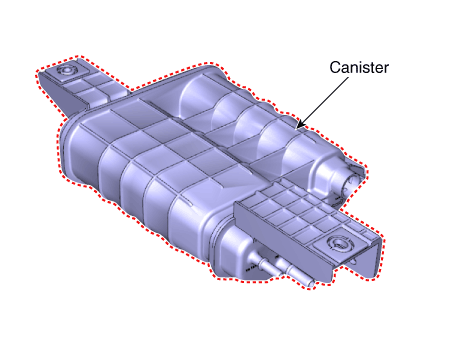

1. Canister

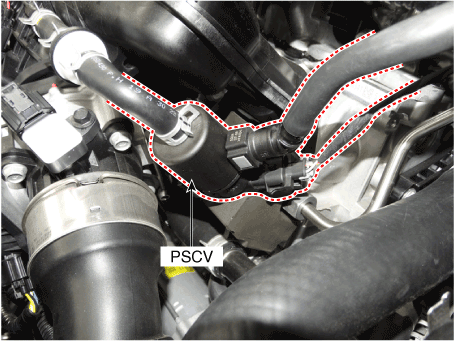

2. Purge control solenoid valve (PCSV)

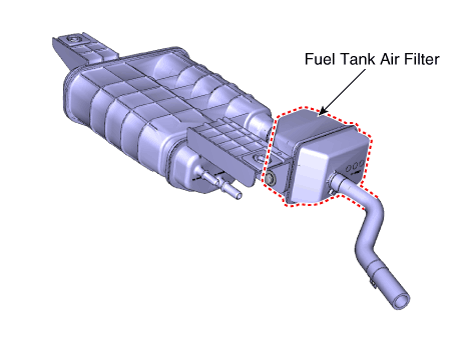

3. Fuel Tank Air Filter

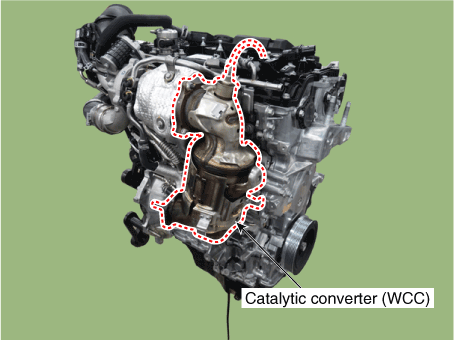

4. Catalytic converter (WCC)

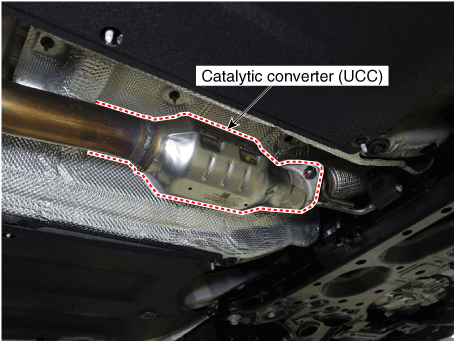

5. Catalytic converter (UCC)

1. Canister
2. Purge control solenoid valve (PCSV)

3. Fuel Tank Air Filter
4. Catalytic converter (WCC)

5. Catalytic converter (UCC)



    Description and operation

    DescriptionEmissions Control System consists of three major systems.• Crankcase Emission Control System prevents blow-by gas from releasing into the atmosphere...

    Troubleshooting

    Troubleshooting Symptom Suspect Area Engine will not start or stuggle to startVapor hose damaged or disconnectedEngine stuggle to startMalfunction of the Purge Control Solenoid ValveRough idle or engine stallsVapor hose damaged or disconnectedMalfunction of the PCV valveRough idleMalfunction of the Evaporative Emission Control SystemExcessive oi..
